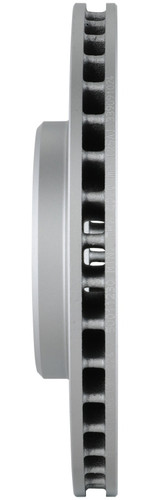

Bosch Disc Brake Rotor 50011230 - view 3

Bosch Disc Brake Rotor 50011230 - view 4

Bosch Disc Brake Rotor 50011230 - view 5

Front Brake Rotor for 1995-2004 Toyota Tacoma - Bosch 50011230

Be the first to review this product

$49.99

MPN: 50011230

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

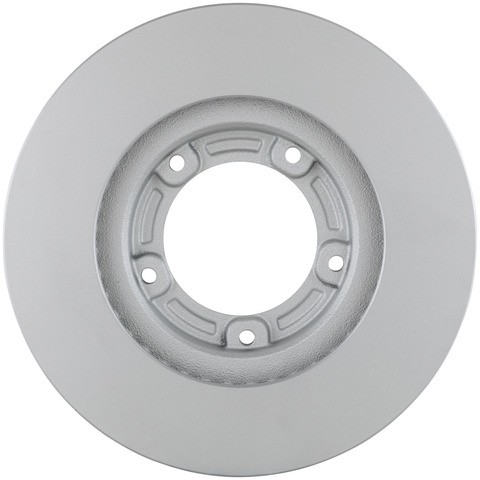

Bosch Disc Brake Rotor P/N:50011230

$49.99

Description

Bosch 50011230 front brake rotor for the 1995-1997 Toyota Tacoma 4-cylinder 2.7L, the 1995-2004 Tacoma 4-cylinder 2.4L or V6 3.4L and the 1999-2004 Tacoma 4-cylinder 2.7L gives the brake pads a vented disc to clamp, which slows the wheel. This Bosch QuietCast premium disc brake rotor is sold without a hub assembly.

100% precision balanced for smooth operation and minimal vibration
Extremely tight tolerances with low run-out and DTV specifications for a smooth pedal feel with no pulsation
Bosch QuietCast brake rotor with heat flowed castings that promote consistent wear for quiet operation and long life
Vane configuration designed to dissipate heat from the braking system
Premium Full Coating covers the vanes where applicable to protect against corrosion
Factory engraved edge code gives proper identification and the discard specification

Quick facts

Part: Bosch 50011230 brake rotor
Also called: disc brake rotor
Fits: 1995-1997 Toyota Tacoma 4-cylinder 2.7L, the 1995-2004 Tacoma 4-cylinder 2.4L or V6 3.4L and the 1999-2004 Tacoma 4-cylinder 2.7L
Position: Front
Condition: New

Pedal pulsation, a squeal or visible grooves in the disc face can mean the rotor is worn, though a sticking caliper or worn brake pads can be behind the same signs. Front rotors are normally replaced together as a pair; this listing is one rotor.

Fits

This rotor is a direct-fit replacement for the 1995-1997 Toyota Tacoma 4-cylinder 2.7L, the 1995-2004 Tacoma 4-cylinder 2.4L or V6 3.4L and the 1999-2004 Tacoma 4-cylinder 2.7L, and the front brakes take two rotors.

Specifications

Fit and size

Position: Front
Quantity per vehicle: 2
Center bore diameter: 86 mm
Thickness: 22 mm (nominal 22 mm)
Hub: rotor without hub assembly

Build and materials

Construction: vented
Coating: full coating including the vanes where applicable
Balance: 100% precision balanced
ABS sensor ring: for trouble-free ABS and traction control operation on equipped vehicles
Condition: New

Interchange: 4351235290

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

4351235290

Frequently Asked Questions

Is this brake rotor for the 1995-2004 Toyota Tacoma V6 3.4L?

Yes. Bosch 50011230 is a front rotor that fits the 1995-2004 Toyota Tacoma V6 3.4L, and the 4-cylinder 2.4L over the same years. The front takes two.

Is the Bosch 50011230 rotor vented or solid?

Vented. Bosch 50011230 is a vented front rotor, 22 mm thick, with a vane configuration designed to dissipate braking heat.

What is the center bore on this front brake rotor?

The center bore diameter is 86 mm. This rotor is sold without a hub assembly.

Do Bosch QuietCast rotors work with ABS and traction control?

Yes. This rotor's ABS sensor ring allows trouble-free operation of ABS and traction control on equipped vehicles.

Where do I find the discard specification on this rotor?

The discard specification is in this rotor's factory engraved edge code, which also identifies the rotor. Compare a disc measurement against it during a brake service.
