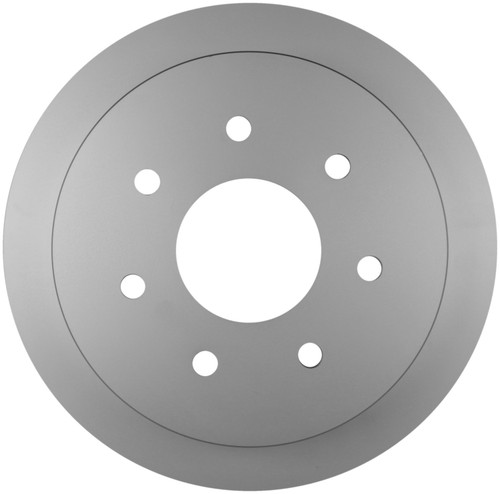

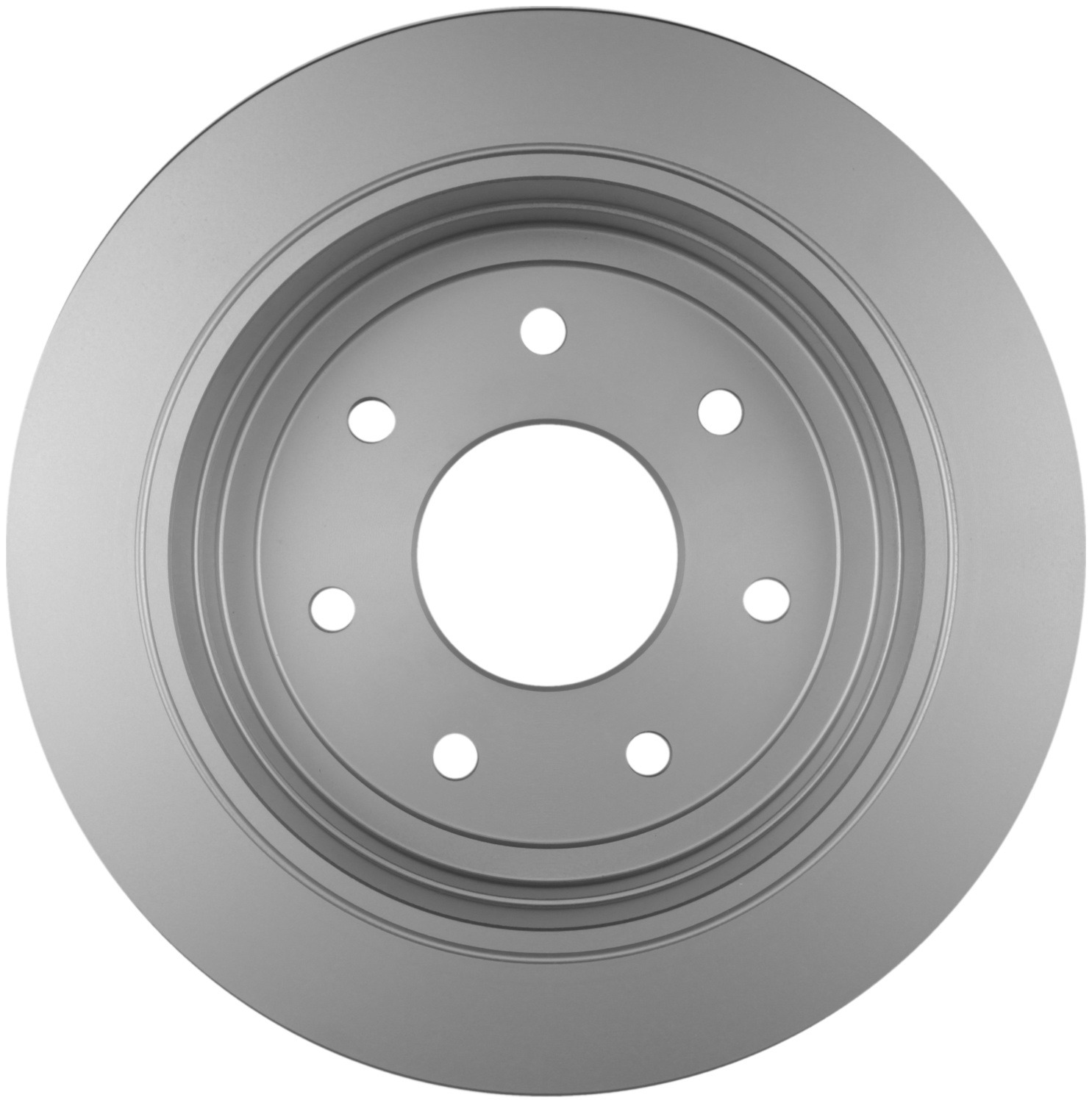

Bosch 20010391 rear brake rotor for the 1997-1999 Ford F-250 and other vehicles turns with the wheel while the pads clamp it to slow the vehicle. This Bosch brake rotor comes without a hub assembly.
A pulsing brake pedal, grooves or cracks on the rotor face, or a squeal can mean a rotor is worn. Pads, calipers and hardware can cause similar signs, so during a brake service with the wheels off, look over the rotor face and measure its thickness against the discard specification on the edge code before ordering. Plan to replace both rear rotors together; this listing is a single rotor.
This rear rotor fits the 1997-1999 Ford F-250, the 2004 Ford F-150 Heritage and the 1997 Ford F-250 HD.
Fit and size
Build and materials
One rear brake rotor without a hub assembly. This listing holds one rotor; the vehicle takes two, one per rear wheel.
Interchange: YL3Z1V125FB
This part cross-references / interchanges with the following part numbers:
Is Bosch 20010391 one of the 1997-1999 Ford F-250 brake rotors for the rear axle?
Yes. Bosch 20010391 is a rear brake rotor that fits the 1997-1999 Ford F-250.
Does this rear rotor fit the 2004 Ford F-150 Heritage?
Yes. Bosch 20010391 is a rear rotor that fits the 2004 Ford F-150 Heritage.
What center bore and thickness does this Bosch QuietCast brake rotor have?
Bosch 20010391 has an 87.5 mm center bore and a 14.1 mm nominal thickness. It is a solid rotor, not a vented one.
Does this rear Bosch QuietCast premium disc brake rotor come with a hub assembly?
No. It is the rotor only, without a hub assembly. The listing holds one rotor, and a rear axle takes two.

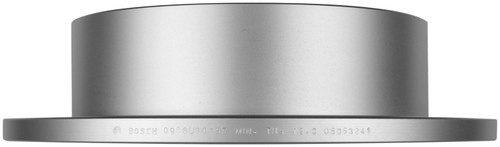

What does the edge code on these Bosch QuietCast rotors tell me?
The factory engraved edge code identifies the rotor and gives its discard specification. Measure the rotor's thickness against that figure when checking wear during a brake service.
