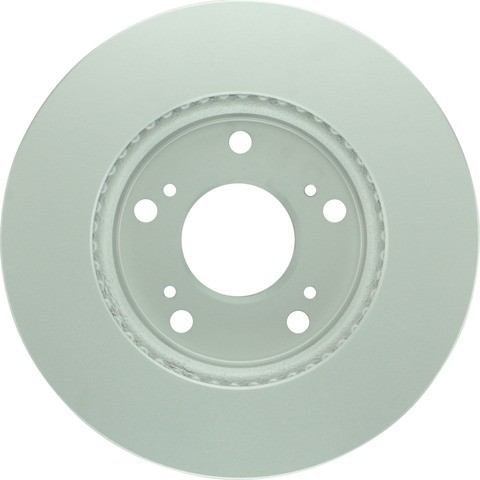

Bosch 26011546 front brake rotor for the 2012-2015 Honda Civic 4-cylinder 1.5L or 1.8L and other vehicles gives the brake pads a vented, coated disc to clamp against. It replaces a front rotor that is worn, grooved or pulsing.
- 100% precision balanced to keep operation smooth and vibration low
- Low run-out and DTV specifications for a smooth pedal feel with no pulsation
- Heat flowed castings for consistent wear, quiet operation and long life
- Vane configuration that helps dissipate heat from the braking system
- Full coating, including the vanes where applicable, protects against corrosion
- Factory-engraved edge code gives identification and the discard specification
Quick facts
- Part: Bosch 26011546 brake rotor
- Also called: disc brake rotor
- Fits: 2012-2015 Honda Civic 4-cylinder 1.5L or 1.8L and other vehicles
- Position: Front
- Condition: New
A pulsing brake pedal, vibration under braking or deep grooves can mean a rotor is worn. During a brake service, with the engine off, measure it against the discard specification on the edge code before replacing it, because a pad or caliper fault could produce a similar pedal feel. Front rotors are normally replaced as a pair, and this listing is one rotor.
Fits
These are front rotors for the 2012-2015 Honda Civic 4-cylinder 1.5L or 1.8L and the 2013-2014 Acura ILX 4-cylinder 1.5L. Each car takes two, one per front wheel.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Center bore diameter: 64.1 mm
- Thickness: 21 mm
Build and materials
- Construction: Vented
- Coating: full coating, including the vanes where applicable
- ABS sensor ring: for trouble-free ABS and traction control operation on equipped vehicles
- Balance: 100% precision balanced
- Condition: New
Interchange: 45251TR0A00 · 45251TR3A00
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Bosch QuietCast brake rotor fit the 2013-2014 Acura ILX 4-cylinder 1.5L?
Yes. Bosch 26011546 is a front rotor for the 2013-2014 Acura ILX 4-cylinder 1.5L (L4-1.5L), and the car takes two, one per front wheel.
Are Bosch QuietCast rotors vented or solid?
Bosch 26011546 is vented and 21 mm thick. Its vane configuration is meant to help dissipate heat from the braking system.
What does the coating on the Bosch QuietCast premium disc brake rotor cover?
A full coating that includes the vanes where applicable, to protect against corrosion. It is sold under the Premium Full Coating name.
Where do I find the discard thickness on this rotor?
Look at the factory-engraved edge code, which carries the identification and the discard specification. During a brake service, with the engine off and cool, measure the rotor and compare it to that spec.
Is this Bosch brake rotor balanced?
Yes. Bosch 26011546 is 100% precision balanced to keep operation smooth and vibration low, with low run-out and DTV specifications.
