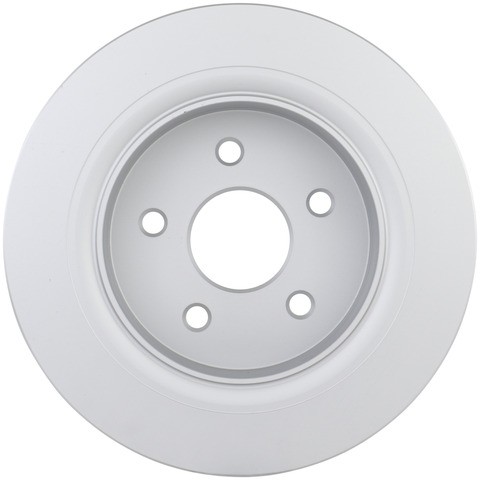

Bosch 16010160 rear brake rotor for the 2011-2018 Ram 1500 and other vehicles turns with the wheel and gives the rear brake pads a surface to clamp when you slow down. This Bosch brake rotor is made using 3D laser measuring and repeated inspection.
- 100% precision balanced for smooth operation and minimal vibration
- Tight tolerances with low run-out and DTV specifications for a smooth pedal feel without pulsation
- Heat flowed castings promote consistent wear for quiet operation and long life

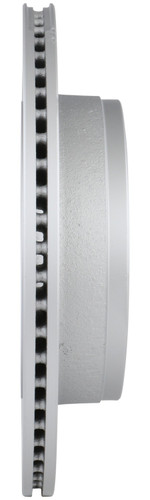

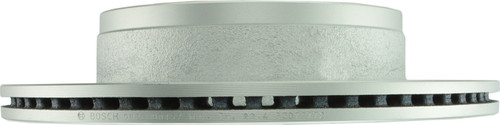

- Vented rotor with a vane configuration for proper heat dissipation from the braking system
- Full coating covers the rotor, vanes included, to protect against corrosion
- Engraved edge code shows the rotor's identification and discard specification
Quick facts
- Part: Bosch 16010160 brake rotor
- Also called: Disc brake rotor
- Fits: 2011-2018 Ram 1500 and other vehicles
- Position: Rear
- Material: Iron alloy
A worn rear rotor can show up as a pulsing brake pedal, a vibration when braking, or grooves and scoring found on the braking surface during a brake service. Before you replace the rotor, rule out worn pads, a sticking caliper or a loose wheel bearing, since any of them can bring on similar symptoms.
Fits
Vehicles it fits include the 2011-2018 Ram 1500, the 2002-2010 Dodge Ram 1500 and the 2004-2009 Dodge Durango. The 2011-2018 Ram 1500 takes two, and this listing is one rotor for one side of the rear axle, so the other rear rotor is normally replaced at the same time. If your vehicle isn't named here, look up your model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Outside diameter: 352.2 mm
- Center bore: 78.4 mm
- Bolt circle: 139.7 mm, 5 lug holes
- Nominal thickness: 22 mm
- Minimum thickness: 20.4 mm
- Height: 72 mm
Build and materials
- Construction: Vented
- Material: Iron alloy
- Coating: Geomet, full coating
- Surface: Smooth
- Parking brake: Drum-in-hat
- ABS sensor ring: for trouble-free ABS and traction control operation on equipped vehicles
In the box
One rear brake rotor. The hub is not included.
Interchange: 52009968AD
Frequently Asked Questions
Are these the right rear rotors for the 2011-2018 Ram 1500?
Yes. Bosch 16010160 is a rear brake rotor that fits the 2011-2018 Ram 1500 and the 2002-2010 Dodge Ram 1500; for another model, look it up in the "Vehicles it fits" section.
What size is this Bosch QuietCast brake rotor?
This rear brake rotor measures 352.2 mm across with a 22 mm nominal thickness, a 78.4 mm center bore and a 139.7 mm bolt circle with 5 lug holes.
Do Bosch QuietCast rotors like this one resist rust?
Yes. This rear brake rotor has a Geomet Premium Full Coating that covers the rotor, vanes included, to protect against corrosion.
When should a Bosch QuietCast Premium disc brake rotor be replaced?
Replace Bosch 16010160 once it wears to its 20.4 mm minimum thickness; the discard specification is also engraved on the rotor's edge.
Does the Bosch 16010160 rotor come with a hub?
No. Bosch 16010160 is the rotor only, without a hub, and each listing is one rotor.
