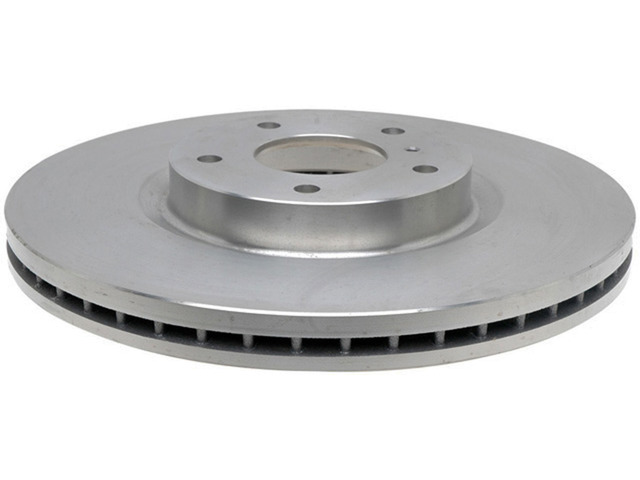

Raybestos Brakes 980307R front brake rotor for the 2005-2006 Nissan Altima and other vehicles gives the brakes a vented disc to clamp against and slow the wheel.
- Raybestos R-Line series, engineered for everyday driving conditions
- G3000-qualified material for dependable braking
- Meets the SAE standard for tensile strength
- Low initial lateral runout and thickness variation for less pedal pulsation and less brake noise
- Mill balanced edges, 100 percent validated, to minimize vibration
- Rust resistant coating
Quick facts
- Part: Raybestos Brakes 980307R brake rotor
- Also called: disc brake rotor
- Fits: 2005-2006 Nissan Altima and other vehicles
- Position: Front
- Material: Cast iron
- Condition: New
A pulsing brake pedal, vibration under braking or visible grooves in the disc can mean a rotor is worn. Those signs alone do not prove the rotor is at fault, since a sticking caliper is another common source of pulling and vibration. Replace the front rotors together as a pair; this listing is one rotor, and the car takes one on each side of the front axle.
Fits
Beyond that car, this rotor is listed for a wide range of Nissan and Infiniti models, such as the 2005-2018 Nissan Maxima and the 2004-2014 Nissan Murano. Developed from OE samples, it is made for OE fit, form and function.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2, one on each side
- Outside diameter: 319.6 mm (12.6 in)
- Inside diameter: 192.5 mm (7.6 in)
- Center hole diameter: 68.1 mm (2.7 in)
- Bolt circle: 114.3 mm (4.5 in), 5 lug holes
- Bolt hole diameter: 12.6 mm (0.5 in)
- Nominal thickness: 28.0 mm (1.1 in)
- Discard thickness: 26.0 mm (1.0 in)
- Maximum diameter at discard: 319.5 mm
- Overall height: 49.3 mm (1.9 in)
Build and materials
- Type: vented, conventional, full cast
- Surface: smooth, non-directional
- Material: cast iron
- Coating: rust resistant
- ABS tone ring: not included
- Condition: new
- Country of origin: China
In the box
One front brake rotor. The ABS tone ring and bearings are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Do these front rotors fit the 2005-2006 Nissan Altima?
Yes, Raybestos Brakes 980307R is a front rotor for the 2005-2006 Nissan Altima and the 2005-2018 Nissan Maxima; if your car is not named here, look it up in the "Vehicles it fits" section.
Are brake pads and rotors for the 2005-2006 Nissan Altima sold together in this listing?
No. This listing is one front rotor; brake pads are sold separately.
Is this disc brake rotor vented or solid?
Vented. Raybestos Brakes 980307R is a full cast, non-directional vented rotor, 319.6 mm across and 28.0 mm thick when new.
How thin can this rotor get before it needs replacing?
Its discard thickness is 26.0 mm, against 28.0 mm new. A rotor measured at or below 26.0 mm is due for replacement.
Does this front rotor come with bearings or an ABS tone ring?
No. This listing is one rotor; the ABS tone ring and bearings are not included.
