Brake Rotor for 2010-2018 International Terrastar & More - Raybestos 680374R

$229.99

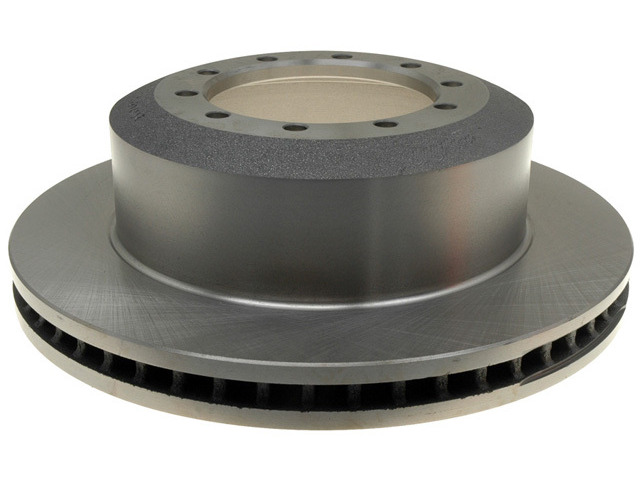

Raybestos Brakes Disc Brake Rotor 680374R
Raybestos Brakes Disc Brake Rotor 680374R - view 2
Raybestos Brakes Disc Brake Rotor 680374R - view 3
Raybestos Brakes Disc Brake Rotor 680374R
Raybestos Brakes Disc Brake Rotor 680374R - view 2
Raybestos Brakes Disc Brake Rotor 680374R - view 3

Vehicles this part fits
    Part number: 680374R
    UPC: 829352599037
    Condition: New
    Weight: 10.59 LBS
    Item Package Quantity: 1
    $229.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Raybestos Brakes Disc Brake Rotor P/N:680374R
    Raybestos Brakes Disc Brake Rotor P/N:680374R
    $229.99
    $229.99

    Raybestos 680374R brake rotor for the 2010-2018 International Terrastar and other vehicles gives the brake pads a surface to clamp against when you brake. This disc brake rotor is one of the Raybestos rotors in the R-Line series.

    • Raybestos R-Line rotors are engineered for everyday driving conditions
    • Made with G3000-qualified material
    • Meets the SAE standard for tensile strength
    • Low initial lateral runout and thickness variation, designed to reduce pedal pulsation and brake noise
    • Mill balanced edges, 100 percent validated, to minimize vibration

    Quick facts

    • Part: Raybestos 680374R brake rotor
    • Also called: disc brake rotor
    • Fits: 2010-2018 International Terrastar and other vehicles
    • Position: Front, rear
    • Material: Cast iron
    • Condition: New

    Pedal pulsation, vibration or noise when braking can mean a worn rotor, but other brake parts may be behind them too. When the wheel is off for a brake service, measure the rotor's thickness with the engine off against the discard thickness below and look for cracks or deep grooves before deciding to replace it. Rotors are normally replaced as a pair on an axle. This listing is one rotor, and the vehicle takes two, one on each side of the axle.

    Fits

    It is listed for a wide range of International and Ford models, including the 2010-2018 International Terrastar, the 2015-2016 Ford F-350 Super Duty and the 2005-2016 Ford F-450 Super Duty. If your vehicle is not named here, look for it in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: front, rear
    • Quantity per vehicle: 2
    • Outside diameter: 390 mm (15.354 in)
    • Center hole diameter: 139.4 mm (5.488 in)
    • Bolt circle: 163 mm (6.417 in), 10 lug holes
    • Mounting bolt hole diameter: 12.9 mm (0.507 in)
    • Overall height: 124.2 mm (4.89 in)
    • Nominal thickness: 39.1 mm (1.54 in)
    • Discard thickness: 37.4 mm (1.472 in)

    Build and materials

    • Type: vented, drum-in-hat
    • Brake surface: non-directional
    • Material: cast iron
    • ABS tone ring: not included
    • Condition: new
    • Country of origin: China

    Frequently Asked Questions

    Is the Raybestos 680374R rotor right for the 2010-2018 International Terrastar?

    Yes. Raybestos 680374R is listed for the 2010-2018 International Terrastar and the 2015-2016 Ford F-350 Super Duty. For another vehicle, search your make and model in the "Vehicles it fits" section.

    What are Raybestos performance rotors in the R-Line series, like the 680374R, engineered for?

    Raybestos R-Line rotors are engineered for everyday driving conditions. The 680374R is a vented, drum-in-hat cast iron rotor.

    Does this listing cover Raybestos brake pads and rotors?

    No. This listing is one Raybestos 680374R rotor; brake pads are sold separately.

    When do Raybestos brakes and rotors like this one reach discard thickness?

    The discard thickness for this rotor is 37.4 mm (1.472 in), against 39.1 mm (1.54 in) when new. A rotor measuring under 37.4 mm is past its limit.

    What are the bolt circle and center hole size of this vented rotor?

    The bolt circle is 163 mm (6.417 in) with 10 lug holes, and the center hole is 139.4 mm (5.488 in). Outside diameter is 390 mm (15.354 in).
