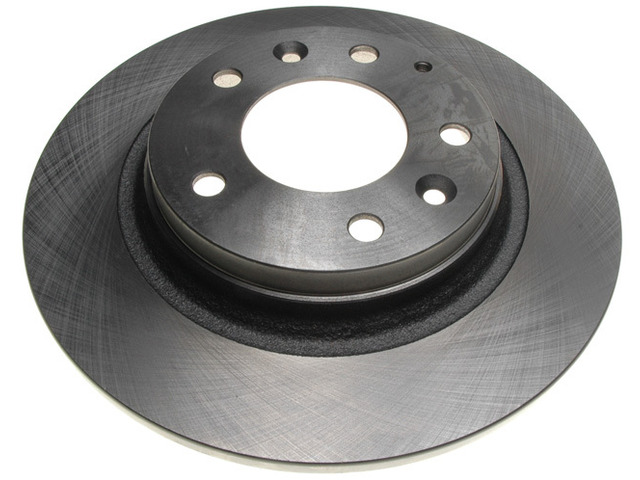

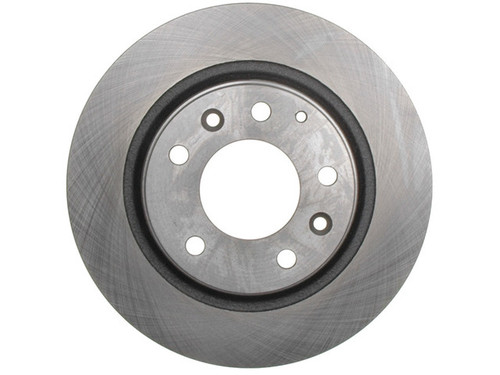

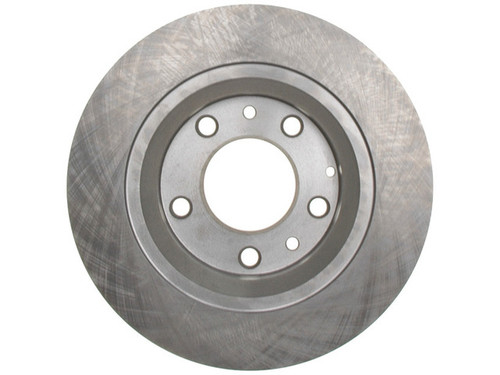

Built for everyday driving, the Raybestos R-Line Brake Rotor, part number 980172R, is a rear disc brake rotor developed from OE samples for dependable stopping. It fits many vehicles, among them the 2006-2012 Ford Fusion, 2010-2015 Mazda MX-5 and 2006-2015 Mazda MX-5 Miata. See the Buyer's Guide tab for the full list.
Raybestos engineers its R-Line rotors and drums for everyday driving conditions. The line offers broad coverage with a focus on dependability, safety and performance.
- OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE standard: Meets the SAE standard for tensile strength, which supports structural integrity.
- Low initial lateral runout and thickness variation: Tight control of runout and thickness variation is designed to help reduce pedal pulsation and brake noise and to support longer pad life.
- Mill-balanced edges: Each R-Line rotor is mill balanced and 100 percent validated. This helps minimize thickness variation and vibration for smoother stopping.
Specifications: Solid (non-vented) cast iron rotor of conventional design, not drum-in-hat, with a non-directional braking surface. It has an 11.015 in (279.8 mm) outside diameter, a 0.394 in (10 mm) nominal thickness, a 0.315 in (8 mm) discard thickness and a 1.57 in (39.9 mm) overall height. The center hole measures 2.84 in (72.15 mm), and there are five 0.511 in (13 mm) mounting bolt holes on a 4.5 in (114.3 mm) bolt circle. An ABS tone ring is not included.
The listed applications use two rotors on the rear axle. This listing is for one rotor, and replacing both sides together as a matched pair is recommended for even, balanced braking. Country of origin: China.
