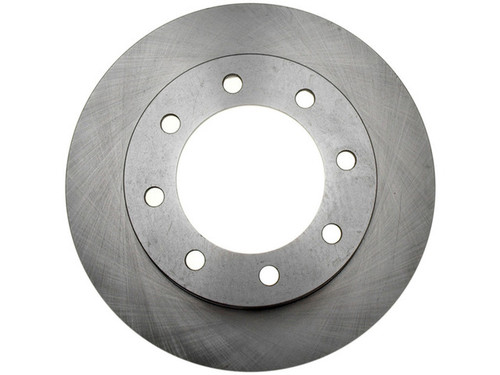

Keep the front brakes on your Super Duty stopping smoothly with the Raybestos R-Line Disc Brake Rotor (MPN 680280R). This front-axle rotor drops in as a direct-fit replacement for the 2005-2013 Ford F-250 Super Duty, 2005-2012 Ford F-350 Super Duty, and 2005-2010 Ford F-450 Super Duty (All engines). It is a conventional, vented cast-iron rotor with a non-directional braking surface, a 13.66 in (346.95 mm) outside diameter, and 8 stud/lug holes.
- OE fit, form, and function: developed from OE samples and made with G3000-qualified cast iron for dependable braking.
- SAE standard: meets the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low lateral runout and thickness variation: a small lateral runout and thickness variation help reduce pedal pulsation and brake noise while supporting extended pad life.
- Mill-balanced edges: mill balanced and 100% validated to minimize thickness variation, vibration, and promote smoother stops.
The ABS tone ring is not included. The listed applications use two rotors on the front axle; for even, balanced braking, replace both sides together as a matched set. Sold individually — this listing is for one rotor. Country of origin: China. Manufacturer part number 680280R.
Frequently Asked Questions
Which vehicles does rotor 680280R fit?
It's a direct-fit front-axle rotor for the 2005-2013 Ford F-250 Super Duty, 2005-2012 F-350 Super Duty, and 2005-2010 F-450 Super Duty (All engines). See the Buyer's Guide tab to confirm your vehicle.
Is this a vented or solid rotor?
It's a conventional, vented cast-iron rotor with a non-directional braking surface, so it can be installed on either the left or right side.
How many rotors do I need?
It's sold individually, and this listing is for one. The listed applications use two on the front axle; replace both sides together as a matched set for even, balanced braking.
Is an ABS tone ring included?
No. Per the catalog, this rotor does not include an ABS tone ring; transfer or source that component as directed by the service procedure if your vehicle requires it.
What are the rotor's key dimensions?
Outside diameter is 13.66 in (346.95 mm) with 8 stud/lug holes, a nominal thickness of 1.495 in (37.95 mm), and a discard thickness of 1.433 in (36.4 mm).
