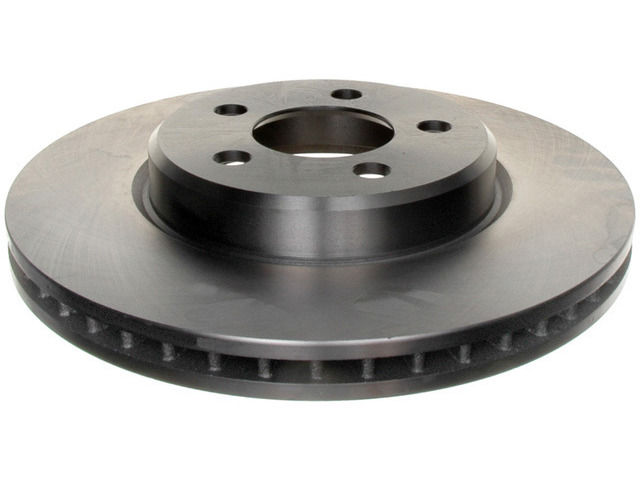

Bring smooth, quiet stops back to the front axle of your Chrysler or Dodge with the Raybestos R-Line Disc Brake Rotor 780255R. Engineered for everyday driving with industry-leading coverage, this vented front rotor drops in as a direct-fit replacement for the listed applications: the 2005-2023 Chrysler 300, 2009-2023 Dodge Challenger, 2006-2023 Dodge Charger and 2005-2008 Dodge Magnum (all engines — see the Buyer's Guide tab for the full list).
Specifications: 320 mm (12.598 in) outside diameter, 28 mm (1.102 in) nominal thickness with a 26.5 mm (1.043 in) discard thickness, a 72.65 mm (2.86 in) center hole, and a 5-lug pattern on a 115 mm (4.528 in) bolt circle. This is a vented, conventional-type rotor; the ABS tone ring is not included. Country of origin: China. Sold individually — order two and replace both front rotors together as a matched set for even, balanced braking. Manufacturer part number 780255R.
Will this rotor fit my vehicle?
It's a direct-fit front rotor for the listed 2005-2023 Chrysler 300, 2009-2023 Dodge Challenger, 2006-2023 Dodge Charger and 2005-2008 Dodge Magnum. Check the Buyer's Guide tab to confirm your specific trim and brake package.
Is this a front or rear rotor?
The catalog lists this as a front disc brake rotor.
Do I need one or two?
It's sold individually. The listed applications use two per axle, so order two and replace both front rotors together as a matched set for even, balanced braking.
Is the ABS tone ring included?
No, the ABS tone ring is not included with this rotor.
Is this a vented rotor, and what is the discard thickness?
Yes, it's a vented, conventional-type rotor with a 28 mm (1.102 in) nominal thickness and a 26.5 mm (1.043 in) discard (minimum) thickness.
