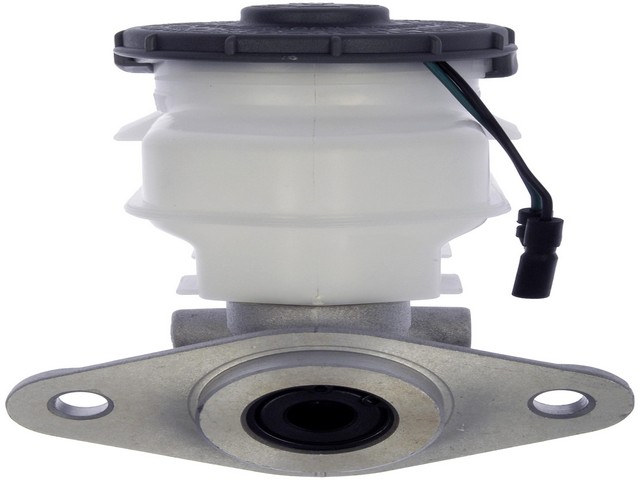

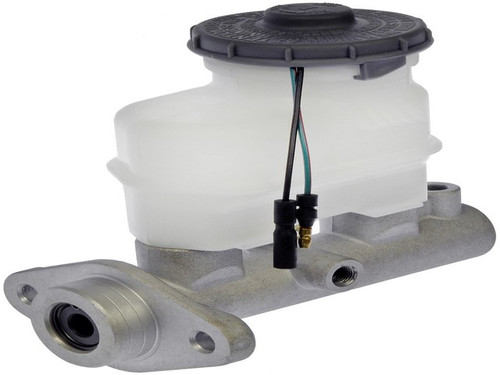

Dorman M390328 brake master cylinder for the 1996-2000 Honda Civic turns pedal force into hydraulic pressure for the brakes.
- Part of the Dorman First Stop line
- Aluminum cylinder housing constructed to match the casting material of the original part
- All rubber components are EPDM compound that resists glycol-based brake fluid
- Made entirely of new materials
- Made to meet rigorous SAE International standards
Quick facts
- Part: Dorman M390328 brake master cylinder
- Fits: 1996-2000 Honda Civic
- Material: Aluminum
- Condition: New
A soft or sinking brake pedal, fluid leaking near the cylinder or a brake warning light can mean this master cylinder is worn, though a leaking brake line or worn pads can be behind them too, so find the cause before you replace it. The 1996-2000 Honda Civic takes one.
Fits
This master cylinder fits the 1996-2000 Honda Civic.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.813 in
- Number of outlets: 2
- Rearward outlet size: M10 x 1.0
- Secondary outlet thread diameter: M10 x 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Rubber components: EPDM compound
- Reservoir: included
- Sensor: included
- Condition: New
- Country of origin: China
In the box
One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new mounting hardware rather than reusing the old ones.
Interchange: 83-08036 · 100-1340 · M-54036 · 13-2771 · 11-2771 · 130.40036 · 131.40036 · 355-59021
18M778 · M901002 · 13245 · MC250660 · 46100S04A01 · 46100S04A02 · 46100S04A03 · M55047 · NM55047 · MC390328 · F131883 · F134651 · MC131883 · MC134651
This part cross-references / interchanges with the following part numbers:
18M778, 83-08036, M901002, 100-1340, M-54036, 13245, 13-2771, 11-2771, 130.40036, 131.40036, MC250660, 355-59021, 46100S04A01, 46100S04A02, 46100S04A03, M55047, NM55047, MC390328, F131883, F134651, MC131883, MC134651
Frequently Asked Questions
Is the Dorman M390328 the right master cylinder for the 1996-2000 Honda Civic?
Yes. Dorman M390328 fits the 1996-2000 Honda Civic, and that car takes one.
Does this brake master cylinder come with the reservoir?
Yes. The reservoir and a sensor are included with the master cylinder. Mounting hardware is not included.
What is the Dorman M390328 master cylinder made of?
The master cylinder is aluminum. All of its rubber components are EPDM compound, which resists glycol-based brake fluid.
What size are the outlets on this master cylinder?
It has two outlets. The rearward and secondary outlets are M10 x 1.0, the primary outlet thread pitch is 1 mm, and the bore diameter is 0.813 in.
Does Dorman M390328 replace number 46100S04A01?
Yes. 46100S04A01 is on the interchange list for Dorman M390328, along with 46100S04A02 and 46100S04A03.
