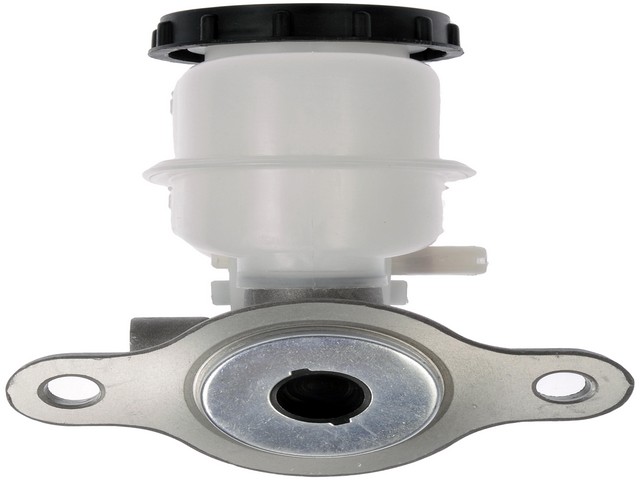

Dorman M630097 brake master cylinder for the 2000-2006 Nissan Sentra turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder is made entirely of new materials.
- Dorman First Stop line brake master cylinder
- Aluminum cylinder housing
- EPDM rubber components that resist glycol-based brake fluid
- Reservoir and sensor included with the master cylinder
- Built to meet SAE International standards
Quick facts
- Part: Dorman M630097 brake master cylinder
- Fits: 2000-2006 Nissan Sentra
- Material: Aluminum
- Condition: New
A soft or sinking brake pedal, a low fluid level in the reservoir or a brake warning light can point to a worn master cylinder. Before you replace it, rule out leaks at the brake lines, hoses and calipers, which can also leave the pedal soft. A shop can pressure-test the system.
Fits
As a master cylinder for the 2000-2006 Nissan Sentra, it is a direct-fit replacement, and each car takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.938 in
- Number of outlets: 2
- Outlet thread: M10 x 1.0, 1 mm pitch
Build and materials
- Material: Aluminum
- Rubber components: EPDM compound
- Condition: New
- Country of origin: China
In the box
One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new mounting hardware.
Interchange: 100-1402 · 13-3434 · 130.42219 · 130.42709 · 131.42219 · 355-67025
M901260 · 13642 · 13953 · MC511480 · M55160 · NM55160 · 460105M200 · MC390747 · F140473 · F140699 · MC140473 · MC140699
This part cross-references / interchanges with the following part numbers:
M901260, 100-1402, 13642, 13953, 13-3434, 130.42219, 130.42709, 131.42219, MC511480, 355-67025, M55160, NM55160, 460105M200, MC390747, F140473, F140699, MC140473, MC140699
Frequently Asked Questions
Does the Dorman M630097 fit the 2000-2006 Nissan Sentra?
Yes. Dorman M630097 is a brake master cylinder for the 2000-2006 Nissan Sentra, and each car takes one.
Does this Dorman master cylinder come with the reservoir?
Yes. The Dorman M630097 comes with its reservoir and sensor. Mounting hardware is not included.
What bore size does this brake master cylinder have?
The bore diameter is 0.938 in. It has two outlets, both threaded M10 x 1.0.
What are the rubber parts in this master cylinder made of?
All the rubber components are made of an EPDM compound that resists glycol-based brake fluid. The housing is aluminum.
Does M630097 interchange with part number 13-3434?
Yes. 13-3434 is one of the numbers this master cylinder replaces, along with 100-1402 and 355-67025.
