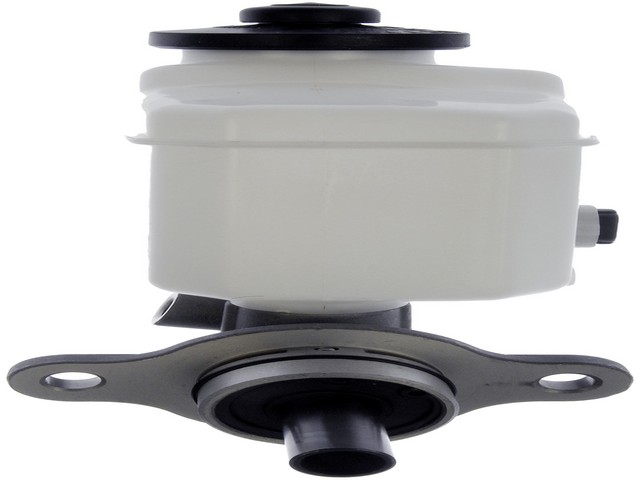

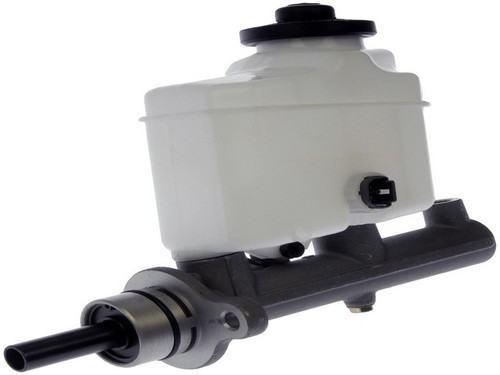

Dorman M630120 brake master cylinder for the 2002-2006 Toyota Camry and other vehicles turns pedal force into hydraulic pressure for the brakes. Its housing is constructed to match the casting material of the original part, for similar performance.
- Aluminum housing with a 0.875 in bore diameter
- All rubber components are EPDM compound for resistance to glycol-based brake fluid
- Made entirely of new materials
- Made to meet rigorous SAE International standards
Quick facts
- Part: Dorman M630120 brake master cylinder
- Fits: 2002-2006 Toyota Camry and other vehicles
- Material: Aluminum
- Condition: New
A brake pedal that sinks, fluid around the cylinder or a brake warning light can mean the master cylinder is worn, though a leaking brake hose or caliper can be behind the same signs, so find the cause before you replace it. This listing is one master cylinder, and the car takes one.
Fits
The vehicles it fits include the 2002-2006 Toyota Camry, the 2004-2008 Toyota Solara and the 2004-2006 Lexus ES330. If your car is not named here, find its year and model in the "Vehicles it fits" section before you order.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.875 in
- Number of outlets: 2
- Rearward outlet size: M10 X 1.0
- Secondary outlet thread diameter: M10 X 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Reservoir: included
- Sensor: included
- Condition: New
- Country of origin: China
In the box
One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new hardware, since the old pieces may not be reusable.
Interchange: 100-1550 · 072-9569 · 13-2965 · 11-2965 · 130.44034 · 130.44124 · 131.44034 · 355-76018
13957 · MC511560 · M55231 · NM55231 · NM55231A · MC390898 · 4720106140 · 4720106290 · 4720133340 · F140656 · MC140656
This part cross-references / interchanges with the following part numbers:
100-1550, 072-9569, 13957, 13-2965, 11-2965, 130.44034, 130.44124, 131.44034, MC511560, 355-76018, M55231, NM55231, NM55231A, MC390898, 4720106140, 4720106290, 4720133340, F140656, MC140656
Frequently Asked Questions
Is the Dorman M630120 the right master cylinder for the 2002-2006 Toyota Camry?
Yes. Dorman M630120 fits the 2002-2006 Toyota Camry, and it also fits the 2004-2008 Toyota Solara.
Will this master cylinder fit a 2004-2006 Lexus ES330?
Yes, Dorman M630120 fits the 2004-2006 Lexus ES330. If your car is not named, look up its year and model in the "Vehicles it fits" section.
Does this master cylinder come with the reservoir and sensor?
Yes. Dorman M630120 includes the reservoir and the sensor. Mounting hardware is not included.
What thread size are the brake line outlets on this master cylinder?
This master cylinder has two outlets with M10 x 1.0 threads and a 1 mm primary outlet thread pitch. The bore diameter is 0.875 in.
How do I tell if my old master cylinder is leaking?
With the engine off, look for brake fluid wetness on the cylinder body or a reservoir level that keeps dropping. A sinking pedal is another sign, and a shop can test the cylinder.
