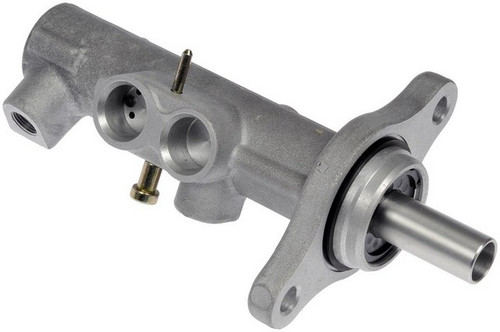

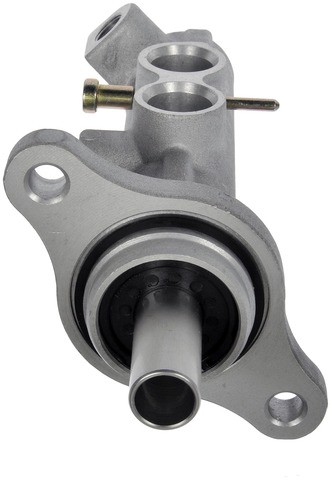

Dorman M630212 brake master cylinder for the 2001 Volvo S60 and other vehicles turns pedal force into hydraulic pressure for the brakes. Its design, function and performance follow the original master cylinder, and every material is new.
- Dorman First Stop product line
- Aluminum master cylinder body
- EPDM rubber components that resist glycol-based brake fluid
- 25 mm bore diameter with four outlets
- Made to meet SAE International standards
Quick facts
- Part: Dorman M630212 brake master cylinder
- Fits: 2001 Volvo S60 and other vehicles
- Material: Aluminum
- Condition: New
A soft or sinking brake pedal, fluid around the master cylinder or a brake warning light can mean the master cylinder is worn, though a leaking brake line or a worn caliper can also be behind them. Have brake problems looked at promptly.
Fits
It is a direct-fit replacement for the 2001 Volvo S60, the 1999-2001 Volvo S80 and the 2001 Volvo V70.
Specifications
Fit and size
- Bore diameter: 25 mm
- Number of outlets: 4
- Rearward outlet size: M12 X 1.0
- Secondary outlet thread diameter: M12 X 1.0
- Primary outlet thread pitch: 1 mm
- Quantity per vehicle: 1
Build and materials
- Material: Aluminum
- Rubber components: EPDM
- Condition: New
- Country of origin: Taiwan
In the box
One brake master cylinder, which is the quantity these Volvos need. The reservoir, mounting hardware and sensor are not included; plan on new mounting hardware, since the old pieces may not be reusable.
Interchange: 11-3047 · 11-4330 · 130.39018 · 355-27016
8602366 · 91730283 · F142307 · MC142307
This part cross-references / interchanges with the following part numbers:
11-3047, 11-4330, 130.39018, 355-27016, 8602366, 91730283, F142307, MC142307
Frequently Asked Questions
Is this a 2001 Volvo S60 master cylinder?
Yes. Dorman M630212 is a direct-fit replacement for the 2001 Volvo S60, and that car takes one master cylinder.
Is this a 2001 Volvo V70 brake master cylinder?
Yes. Dorman M630212 is a direct-fit replacement for the 2001 Volvo V70, and one master cylinder is needed.
What material is this Dorman brake master cylinder made of?
Dorman M630212 is aluminum, and its rubber components are EPDM, a compound that resists glycol-based brake fluid.
Does the Dorman master cylinder come with a reservoir?
No. This listing is the master cylinder alone; the reservoir, mounting hardware and sensor are not included.
What bore size and outlet threads does the M630212 have?
The bore diameter is 25 mm and there are four outlets. The rearward and secondary outlets are M12 X 1.0, with a 1 mm primary outlet thread pitch.
