Brake Master Cylinder for 2004-2009 Toyota Prius - Dorman M630301

$125.99

Vehicles this part fits

    Part number: M630301
    UPC: 885484102071
    Condition: New
    Weight: 2.03 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $125.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - First Stop Brake Master Cylinder P/N:M630301
    Dorman - First Stop Brake Master Cylinder P/N:M630301
    $125.99
    $125.99

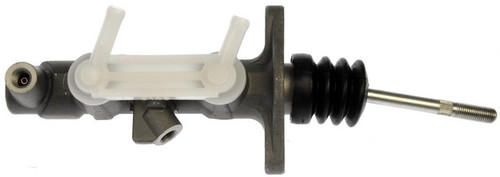

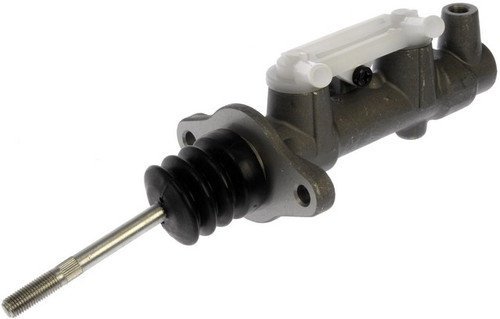

    Dorman M630301 brake master cylinder for the 2004-2009 Toyota Prius turns pedal force into hydraulic pressure for the brakes. When the original has worn out or leaks, this Dorman brake master cylinder replaces it.

    • Part of the Dorman First Stop line
    • Aluminum housing with two outlets
    • All rubber components are EPDM compound for resistance to glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet SAE International standards

    Quick facts

    • Part: Dorman M630301 brake master cylinder
    • Fits: 2004-2009 Toyota Prius
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, brake fluid leaking at the cylinder or a brake warning light can mean the master cylinder is wearing out. A leaking caliper, a damaged brake hose or air in the lines can be behind these signs too, so find the cause before buying a replacement.

    Fits

    This is a direct-fit replacement brake master cylinder for the 2004-2009 Toyota Prius.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.75 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Standards: SAE International
    • Condition: New
    • Country of origin: China

    In the box

    One brake master cylinder; the vehicle takes one. The reservoir, sensor and mounting hardware are not included, and the old mounting hardware may not be reusable, so plan on new pieces.

    Interchange: 100-1630 · 13-4299 · 11-3400 · 11-4299 · 130.44504 · 355-76093
    14063 · NM55521 · MC390872 · 4720147040 · F142632 · MC142632

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-1630, 14063, 13-4299, 11-3400, 11-4299, 130.44504, 355-76093, NM55521, MC390872, 4720147040, F142632, MC142632

    Frequently Asked Questions

    Is this the right master cylinder replacement for the 2004-2009 Toyota Prius?

    Yes. Dorman M630301 is a direct-fit replacement for the 2004-2009 Toyota Prius, and the vehicle takes one.

    Does this master cylinder come with the reservoir and sensor?

    No. This listing is the master cylinder only. The reservoir, sensor and mounting hardware are not included.

    What is this Dorman master cylinder made of?

    Dorman M630301 has an aluminum housing. Its rubber components are EPDM compound, which resists glycol-based brake fluid.

    How can I tell whether a pedal problem is coming from the master cylinder?

    Fluid wetness on the cylinder body, or a pedal that feels soft or sinks, can point to wear. A shop can pressure-test the brake system, and brake problems should be checked promptly.

    What are the outlet thread sizes on this brake master cylinder?

    The rearward and secondary outlets are both M10 x 1.0, and the primary outlet thread pitch is 1 mm. The bore is 0.75 in.
