Dorman - First Stop Brake Master Cylinder P/N:M390233
Dorman M630562 brake master cylinder for the 2006-2019 Toyota RAV4 and other vehicles turns pedal force into hydraulic pressure for the brakes. Its design and performance follow those of the original master cylinder on specific vehicle years, makes and models.
A pedal that sinks toward the floor or feels soft, or fluid around the cylinder, can mean the master cylinder is wearing out. A leak or soft pedal can also start at a caliper or a line, so with the engine off and cool, check the reservoir level and look for wet spots before replacing it.
The 2006-2019 Toyota RAV4, the 2018-2020 Lexus NX300 and the 2015-2016 Lexus NX200t all fit this master cylinder, as do other vehicles. This listing is one master cylinder, and the 2006-2019 Toyota RAV4 takes one. Driving something else? Look up your year and model in the "Vehicles it fits" section.
Fit and size
Build and materials

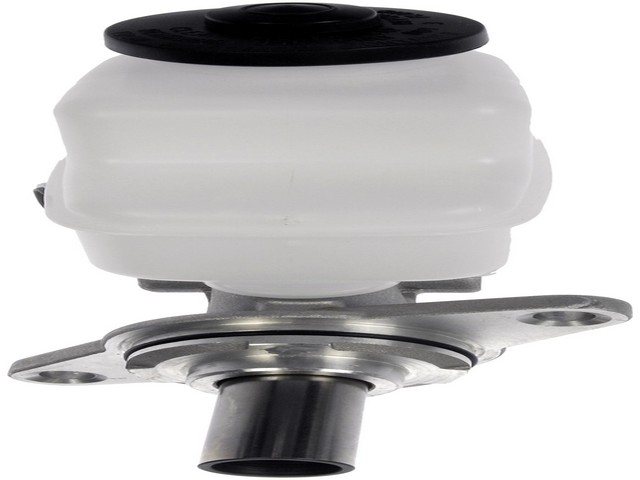

One brake master cylinder with its reservoir and sensor. Mounting hardware is not included, and the old hardware may not be reusable, so plan on new.
Interchange: 100-1714 · 13-3322 · 11-3322 · 130.44920 · 355-76184
NM55419 · MC391296 · 4702842070 · 472010R080 · 472010R082 · 4720142380 · 4720142382 · F144240 · F900098 · MC144240 · MWMMC900098
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is the Dorman M630562 a 2006-2019 Toyota RAV4 master cylinder?
Yes. Dorman M630562 fits the 2006-2019 Toyota RAV4 and takes one per vehicle. It fits other vehicles as well, so check your year and model in the "Vehicles it fits" section.
Does the Dorman M630562 come with the reservoir and sensor?
Yes. The Dorman M630562 master cylinder comes with its reservoir and sensor. Mounting hardware is not included.
What bore and outlet sizes does this brake master cylinder have?
The bore is 0.875 in. The master cylinder has two outlets threaded M10 x 1.0, with a 1 mm thread pitch on the primary outlet.
Do the rubber parts in this master cylinder resist glycol-based brake fluid?
Yes. All the rubber components are made of EPDM compound, which resists glycol-based brake fluid. The housing is aluminum.
Which signs can mean a brake master cylinder is failing?
A pedal that slowly sinks to the floor, a soft or spongy pedal, or fluid around the cylinder can mean it. A shop can test the master cylinder and the rest of the brake system.
