Brake Master Cylinder for 2002-2004 Honda CR-V & More - Dorman M630292

$158.99

Vehicles this part fits

    Part number: M630292
    UPC: 082702633960
    Condition: New
    Weight: 1.73 LBS
    Item Package Quantity: 1
    $158.99
    Adding to cart… The item has been added

    Have questions?

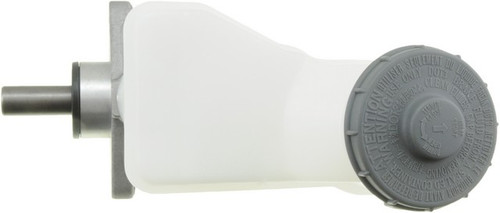

    Dorman - First Stop Brake Master Cylinder P/N:M630292
    Dorman - First Stop Brake Master Cylinder P/N:M630292
    $158.99
    $158.99

    Dorman M630292 brake master cylinder for the 2002-2004 Honda CR-V and other vehicles turns pedal force into hydraulic pressure for the brakes.

    • Dorman First Stop product line
    • Aluminum cylinder housing with a 0.938 inch bore
    • All rubber components are EPDM compound, which resists glycol-based brake fluid
    • Made entirely of new materials
    • Built to meet SAE International standards

    Quick facts

    • Part: Dorman M630292 brake master cylinder
    • Fits: 2002-2004 Honda CR-V and other vehicles
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, brake fluid around the cylinder or a brake warning light can be signs of a worn master cylinder, though other brake parts can show the same thing. With the engine off, start by looking at the fluid level and checking the cylinder and lines for wet spots. A shop can pressure-test anything beyond that.

    Fits

    This is a direct-fit replacement for the 2002-2004 Honda CR-V, and it also fits the 2002-2006 Acura RSX. Each car takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.938 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new fasteners rather than reusing the old ones.

    Interchange: 100-3028 · 072-9536 · 13-3175 · 13-4200 · 11-3175 · 130.40052 · 355-59034
    13872 · 46100S6MA52 · 46100SCAA51 · M55145 · NM55145 · MC390721 · F141573 · MC141573

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-3028, 072-9536, 13872, 13-3175, 13-4200, 11-3175, 130.40052, 355-59034, 46100S6MA52, 46100SCAA51, M55145, NM55145, MC390721, F141573, MC141573

    Frequently Asked Questions

    Is this RSX master cylinder the right one for the 2002-2006 Acura RSX?

    Yes. Dorman M630292 fits the 2002-2006 Acura RSX, and the car takes one.

    Is this the right master cylinder for the 2002-2004 Honda CR-V?

    Yes. Dorman M630292 fits the 2002-2004 Honda CR-V, and the car takes one.

    Does this master cylinder come with the reservoir and sensor?

    Yes, the reservoir and the sensor are included. Mounting hardware is not included, so plan on new fasteners.

    What bore size does this master cylinder have?

    The bore diameter is 0.938 inch. The master cylinder has 2 outlets, and the rearward outlet is M10 x 1.0.

    Are the rubber parts in this master cylinder suited to glycol-based brake fluid?

    Yes. All rubber components are made of EPDM compound, which resists glycol-based brake fluid.
