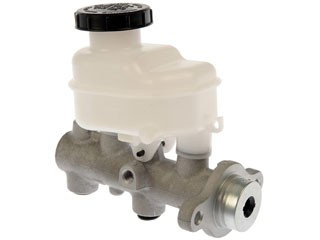

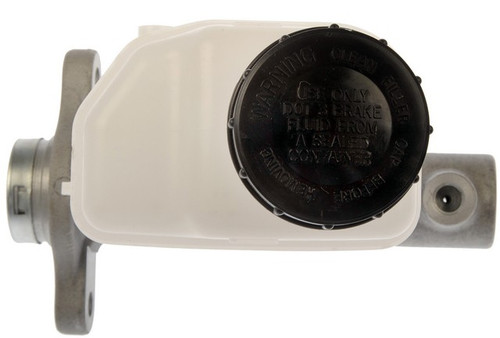

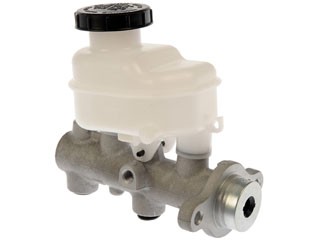

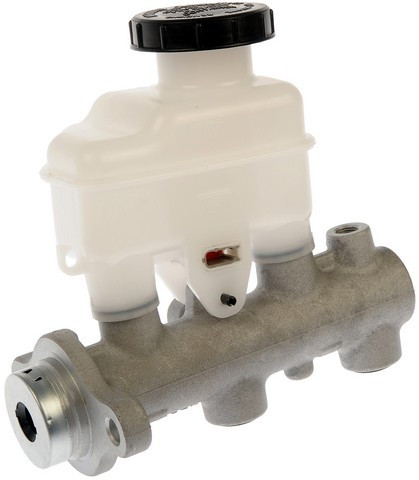

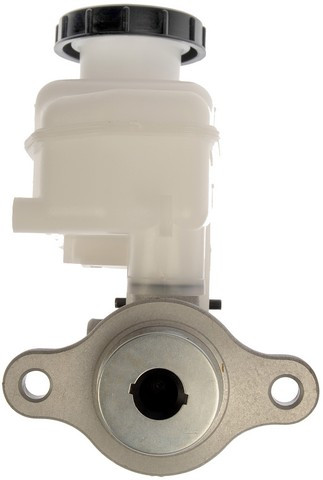

Dorman M630317 brake master cylinder for the 2002-2007 Mitsubishi Lancer turns pedal force into hydraulic pressure for the brakes.
- Part of the Dorman First Stop line
- Aluminum master cylinder housing
- Rubber components in EPDM compound for resistance to glycol-based brake fluid
- Made entirely of new materials
- Made to meet rigorous SAE International standards
Quick facts
- Part: Dorman M630317 brake master cylinder
- Fits: 2002-2007 Mitsubishi Lancer
- Material: Aluminum
- Condition: New
A soft or sinking brake pedal, brake fluid around the cylinder or a brake warning light can mean the master cylinder is wearing out. Before you replace it, rule out a leaking line, hose or caliper and a low fluid level, since those can soften the pedal too.
Fits
This master cylinder fits the 2002-2007 Mitsubishi Lancer, and the car takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.875 in
- Number of outlets: 2
- Rear outlet size: M10 x 1.0
- Secondary outlet thread diameter: M10 x 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Rubber components: EPDM compound
- Reservoir: included
- Sensor: included
- Condition: New
- Country of origin: Taiwan
In the box
One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new hardware.
Interchange: 100-4287 · 11-3295 · 11-3529 · 130.46521 · 355-72052
13643 · NM55408 · MR527468 · MC390759 · F142458 · MC142458
This part cross-references / interchanges with the following part numbers:
100-4287, 13643, 11-3295, 11-3529, 130.46521, 355-72052, NM55408, MR527468, MC390759, F142458, MC142458
Frequently Asked Questions
Is this the right master cylinder for the 2002-2007 Mitsubishi Lancer?
Yes. Dorman M630317 fits the 2002-2007 Mitsubishi Lancer, and the car takes one.
Does this Dorman master cylinder include the reservoir?
Yes. Dorman M630317 comes with the reservoir and a sensor. Mounting hardware is not included.
What is the bore size of this Dorman brake master cylinder?
The bore diameter is 0.875 inch, and the cylinder has two outlets.
What are the seals in this master cylinder made of?
All rubber components are made of EPDM compound, which resists glycol-based brake fluid. The housing is aluminum.
What thread do the outlets on this master cylinder use?
The rear outlet and the secondary outlet are both M10 x 1.0, and the primary outlet thread pitch is 1 mm.
