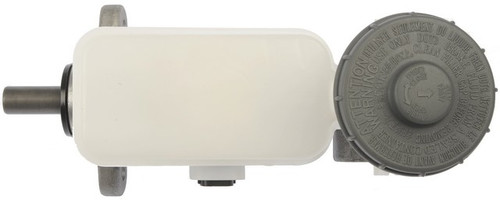

Dorman M630426 brake master cylinder for the 2005-2006 Honda CR-V turns pedal force into hydraulic pressure that moves brake fluid to the brakes. The Dorman master cylinder is made entirely of new materials.
- Aluminum housing matched in casting material to the part it replaces
- All rubber components are EPDM compound, which resists glycol-based brake fluid
- Made to meet rigorous SAE International standards
- Two outlets, with a rearward outlet size of M12 X 1.0
Quick facts
- Part: Dorman M630426 brake master cylinder
- Fits: 2005-2006 Honda CR-V
- Material: Aluminum
- Condition: New
A failing master cylinder can show up as a soft or sinking brake pedal, fluid leaking around the cylinder or a brake warning light. A leaking caliper or hose can also leave the pedal low, so with the engine off, look over the cylinder and the lines around it for wet fluid before you commit to a replacement. The car takes one master cylinder.
Fits
This master cylinder is a direct-fit replacement for the 2005-2006 Honda CR-V.
Specifications
Fit and size
- Bore diameter: 1 in
- Number of outlets: 2
- Rearward outlet size: M12 X 1.0
- Secondary outlet thread diameter: M12 X 1.0
- Primary outlet thread pitch: 1 mm
- Quantity per vehicle: 1
Build and materials
- Material: Aluminum
- Rubber components: EPDM compound
- Standards: SAE International
- Condition: New
- Country of origin: Taiwan
In the box
One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new hardware, since the old pieces may not be reusable.
Interchange: 100-1363 · 072-9753 · 13-3286 · 11-3286 · 130.40061 · 355-59042
13890 · 46100S9AA61 · 46100S9AA62 · NM55310 · MC390998 · F142386 · MC142386
This part cross-references / interchanges with the following part numbers:
100-1363, 072-9753, 13890, 13-3286, 11-3286, 130.40061, 355-59042, 46100S9AA61, 46100S9AA62, NM55310, MC390998, F142386, MC142386
Frequently Asked Questions
Is the Dorman M630426 the right master cylinder for the 2005-2006 Honda CR-V?
Yes. Dorman M630426 is a master cylinder for the 2005-2006 Honda CR-V, and each car takes one.
Does this Dorman M630426 come with the reservoir and sensor?
Yes, the box holds one master cylinder with its reservoir and sensor; mounting hardware is not included.
What is the bore size of this Dorman brake master cylinder?
The Dorman M630426 has a 1 in bore and two outlets, in an aluminum housing.
Are the rubber parts in this master cylinder EPDM?
Yes. All rubber components in this master cylinder are an EPDM compound, which resists glycol-based brake fluid.
Is this master cylinder made to SAE standards?
Yes. Dorman M630426 is made to meet rigorous SAE International standards, and it is built entirely from new materials.
