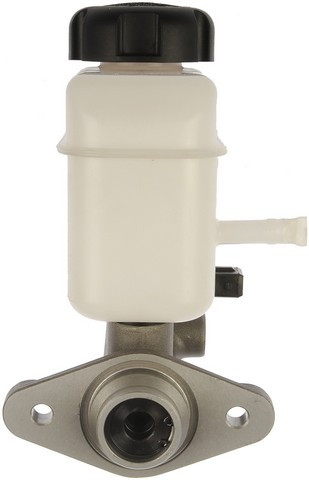

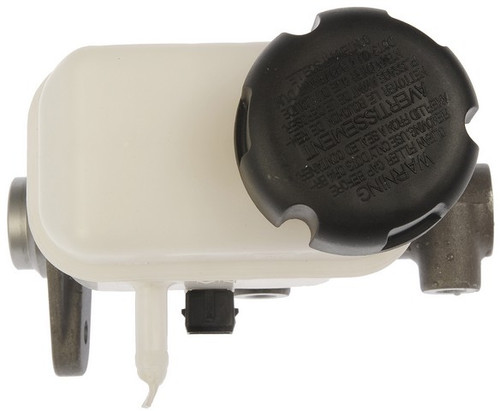

Dorman M630457 brake master cylinder for the 2006-2010 Hyundai Sonata and other vehicles turns pedal force into hydraulic pressure for the brake system. Its design, function and performance follow the original master cylinder for these years and models.
- Part of the Dorman First Stop product line
- Aluminum body with a 1 in bore diameter
- All rubber components are EPDM compound, resistant to glycol-based brake fluid
- Made to meet rigorous SAE International standards
- Made entirely of new materials
Quick facts
- Part: Dorman M630457 brake master cylinder
- Fits: the 2006-2010 Hyundai Sonata and other vehicles
- Material: Aluminum
- Condition: New
A soft or sinking brake pedal, brake fluid around the cylinder or a brake warning light can mean the master cylinder is worn, though a leak elsewhere in the brake system can look the same. Before you replace the master cylinder, rule out a leaking line, hose or caliper, because a new cylinder will not fix those.
Fits
It fits the 2006-2010 Hyundai Sonata and the 2006-2013 Hyundai Azera, and each car takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 1 in
- Number of outlets: 2
- Rearward outlet size: M10 x 1.0
- Secondary outlet thread diameter: M10 x 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Reservoir: included
- Sensor: included
- Condition: New
- Country of origin: China
In the box
One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new bolts rather than reusing the old ones.
Interchange: 100-2049 · 072-9611 · 13-3390 · 11-3390 · 11-4621 · 130.51038 · 355-03036
585103K200 · NM55368 · MC391116 · F142427 · MC142427
This part cross-references / interchanges with the following part numbers:
100-2049, 072-9611, 13-3390, 11-3390, 11-4621, 130.51038, 355-03036, 585103K200, NM55368, MC391116, F142427, MC142427
Frequently Asked Questions
Is this the right master cylinder for the 2006-2010 Hyundai Sonata?
Yes. Dorman M630457 fits the 2006-2010 Hyundai Sonata and the 2006-2013 Hyundai Azera, and each car takes one.
Does this Dorman master cylinder come with the reservoir and sensor?
Yes. Dorman M630457 includes the reservoir and the sensor. Mounting hardware is not included.
What is the bore size of this Dorman brake master cylinder?
The bore diameter is 1 in. This aluminum master cylinder has two outlets, and the rearward outlet size is M10 x 1.0.
Can a sinking brake pedal mean a master cylinder is worn?
It can, since the cylinder builds the hydraulic pressure for the brakes, but other brake leaks can feel the same. Have the brakes checked promptly by a shop.
Which brake fluid are the rubber parts in this master cylinder made for?
All rubber components in Dorman M630457 are made of EPDM compound, chosen for resistance to glycol-based brake fluid.
