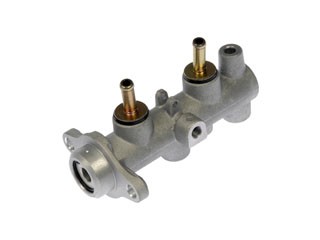

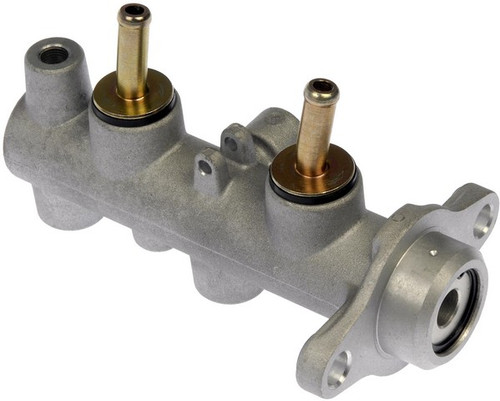

Dorman M630555 brake master cylinder for the 2004-2008 Mitsubishi Endeavor turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder is made entirely of new materials.
- Housing made of aluminum
- All rubber components use EPDM compound, which resists glycol-based brake fluid
- Made to meet SAE International standards
- Part of the Dorman First Stop line
Quick facts
- Part: Dorman M630555 brake master cylinder
- Fits: 2004-2008 Mitsubishi Endeavor and 2010-2011 Mitsubishi Endeavor
- Material: Aluminum
- Condition: New
A soft or sinking brake pedal, brake fluid around the cylinder body or a brake warning light can mean the master cylinder is wearing out. Before replacing it, look with the engine off for wet fluid on the cylinder and the area around it, because a leak at a brake line or caliper can look much the same.
Fits
This master cylinder fits the 2004-2008 Mitsubishi Endeavor and the 2010-2011 Endeavor.
Specifications
Fit and size
- Quantity per vehicle: 1
- Number of outlets: 2
- Bore diameter: 1 in
- Rearward outlet size: M10 X 1.0
- Secondary outlet thread diameter: M10 X 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Rubber components: EPDM compound
- Condition: New
- Country of origin: Taiwan
In the box
One brake master cylinder. This listing holds one, and the 2004-2008 Mitsubishi Endeavor and the 2010-2011 Endeavor each take one. The reservoir, sensor and mounting hardware are not included, so plan on new mounting hardware rather than reusing the old pieces.
Interchange: 100-4536 · 11-3207 · 130.46018 · 355-72016
MR569685 · MC390886 · F143127 · MC143127
This part cross-references / interchanges with the following part numbers:
100-4536, 11-3207, 130.46018, 355-72016, MR569685, MC390886, F143127, MC143127
Frequently Asked Questions
Is this Dorman master cylinder right for the 2010-2011 Mitsubishi Endeavor?
Yes. Dorman M630555 fits the 2010-2011 Mitsubishi Endeavor as well as the 2004-2008 Mitsubishi Endeavor, and each takes one.
Does the Dorman M630555 come with a reservoir or mounting hardware?
No. This listing is one brake master cylinder only. The reservoir, sensor and mounting hardware are not included, so plan on new hardware.
What is this brake master cylinder made of?
The housing is aluminum, and all the rubber components are made of EPDM compound, which resists glycol-based brake fluid.
How can I tell if a brake master cylinder is leaking?
With the engine off, look for brake fluid on the cylinder body and the area around it. A soft or sinking pedal can also be a sign, and a shop can test the cylinder.
What size are the outlet threads on the Dorman M630555?
The rearward and secondary outlets are M10 X 1.0, and the primary outlet thread pitch is 1 mm. The cylinder has two outlets and a 1 in bore.
