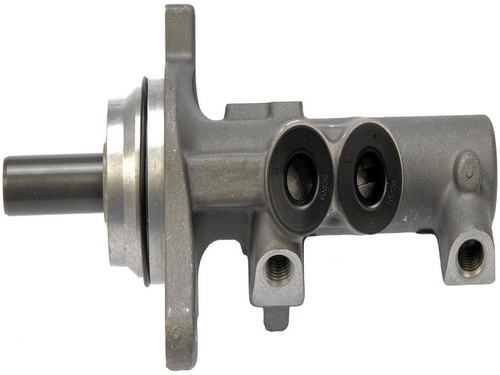

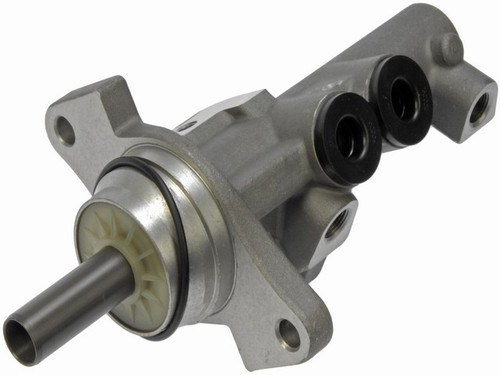

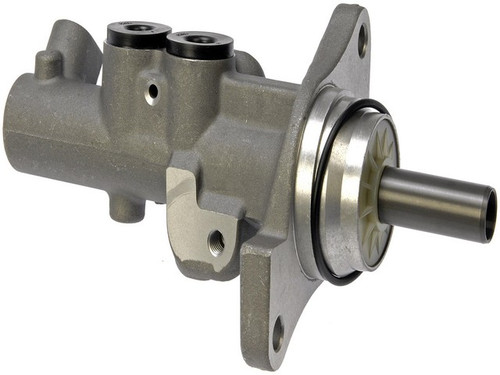

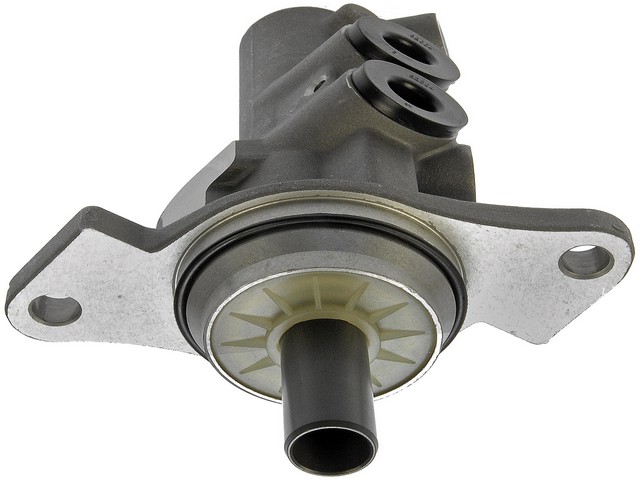

Dorman M630600 brake master cylinder for the 2007-2016 Volkswagen Jetta and other vehicles turns pedal force into hydraulic pressure for the brakes.
- Sold in the Dorman First Stop line
- Aluminum housing, matched to the casting material of the original part
- All rubber components are EPDM compound, which resists glycol-based brake fluid
- Made entirely of new materials
- Made to meet rigorous SAE International standards
Quick facts
- Part: Dorman M630600 brake master cylinder
- Fits: 2007-2016 Volkswagen Jetta and other vehicles
- Material: Aluminum
- Condition: New
A worn master cylinder can leave the brake pedal soft or sinking, show fluid around the cylinder, or bring on the brake warning light. These signs alone do not prove the cylinder is the problem, since a leak in a brake line can leave the pedal just as soft.
Fits
This part is listed for a wide range of Volkswagen and SEAT models, including the 2007-2016 Volkswagen Jetta and the 2014-2016 Volkswagen Beetle. It is also a Golf master cylinder for the 2010-2014 Volkswagen Golf. The 2007-2016 Volkswagen Jetta takes one. If your car is not named here, run its year and engine through the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.875 in
- Number of outlets: 2
- Rearward outlet thread: M12 x 1.0
- Secondary outlet thread: M12 x 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Rubber components: EPDM compound
- Standards: SAE International
- Condition: New
- Country of origin: China
In the box
One master cylinder. The reservoir, sensor and mounting hardware are not included, and old fasteners may not be reusable, so plan on new ones.
Interchange: 100-1114 · 13-4289 · 11-3297 · 11-3303 · 11-3674 · 11-4289 · 130.33422 · 130.33423 · 130.33426
NM4222 · NM55381 · NM55677 · MC391557 · 1K1614019C · 1K1614019G · 1K1614019M · F144242 · MC144242
This part cross-references / interchanges with the following part numbers:
100-1114, 13-4289, 11-3297, 11-3303, 11-3674, 11-4289, 130.33422, 130.33423, 130.33426, NM4222, NM55381, NM55677, MC391557, 1K1614019C, 1K1614019G, 1K1614019M, F144242, MC144242
Frequently Asked Questions
Is this the right Jetta master cylinder for a 2007-2016 Volkswagen Jetta?
Yes. Dorman M630600 is listed for the 2007-2016 Volkswagen Jetta, which takes one master cylinder.
Will this VW Beetle master cylinder work on a 2014-2016 Volkswagen Beetle?
Yes. This Dorman M630600 brake master cylinder is listed for the 2014-2016 Volkswagen Beetle, one per car.
Does this master cylinder come with a reservoir or sensor?
No. The listing is the master cylinder alone. The reservoir, sensor and mounting hardware are not included.
What bore size and outlet threads does this brake master cylinder have?
The bore is 0.875 in, and the cylinder has two outlets threaded M12 x 1.0. The primary outlet thread pitch is 1 mm.
Is 1K1614019C a number this Dorman master cylinder replaces?
Yes. 1K1614019C is among the interchange numbers listed for Dorman M630600, the maker's other-brand and OE cross-references.
