Brake Master Cylinder for 2011-2019 Ford Fiesta - Dorman M630694

$199.99

Vehicles this part fits

    Part number: M630694
    UPC: 885484103610
    Condition: New
    Weight: 1.73 LBS
    Item Package Quantity: 1
    $199.99
    Adding to cart… The item has been added

    Have questions?

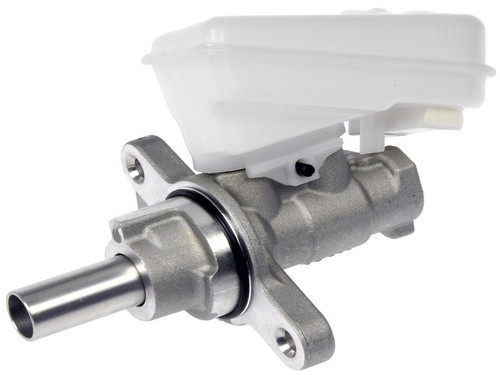

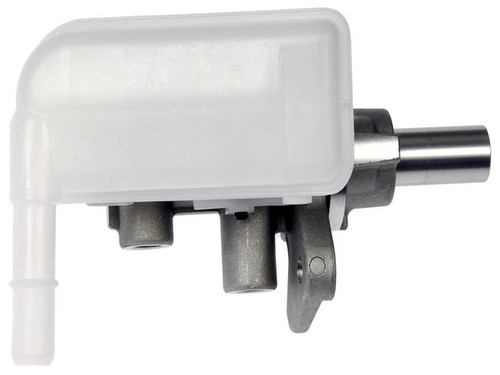

    Dorman - First Stop Brake Master Cylinder P/N:M630694
    Dorman - First Stop Brake Master Cylinder P/N:M630694
    $199.99
    $199.99

    Dorman M630694 brake master cylinder for the 2011-2019 Ford Fiesta turns pedal force into hydraulic pressure for the brakes. This 2011-2019 Ford Fiesta master cylinder is made entirely of new materials.

    • Aluminum housing built to match the casting material of the original part
    • EPDM rubber components resist glycol-based brake fluid
    • Made to meet rigorous SAE International standards
    • Reservoir and sensor included with the master cylinder

    Quick facts

    • Part: Dorman M630694 brake master cylinder
    • Fits: 2011-2019 Ford Fiesta
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, or brake fluid leaking around the cylinder, can mean the master cylinder is worn, though a leaking brake line or a failing brake booster can be behind them too, so find the cause before replacing it.

    Fits

    It is a direct-fit replacement for the 2011-2019 Ford Fiesta, and each car takes one. This listing is a single master cylinder.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.813 in
    • Number of outlets: 2
    • Rearward outlet size: M12 x 1.0
    • Secondary outlet thread diameter: M12 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM
    • Reservoir: included
    • Sensor: included
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One master cylinder. Mounting hardware is not included, so plan on new hardware, since the old pieces may not be reusable.

    Interchange: 100-2922 · 13-4480 · 10-4480 · 130.61144 · 355-54106
    AE8Z2140A · AE8Z2140D · NM4286 · MC391160 · R144480

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-2922, 13-4480, 10-4480, 130.61144, 355-54106, AE8Z2140A, AE8Z2140D, NM4286, MC391160, R144480

    Frequently Asked Questions

    Is the Dorman M630694 the right master cylinder for a 2011-2019 Ford Fiesta?

    Yes. Dorman M630694 is a direct-fit brake master cylinder for the 2011-2019 Ford Fiesta, and each car takes one.

    Does the Dorman M630694 come with the reservoir and sensor?

    Yes. Dorman M630694 includes the reservoir and the sensor with the master cylinder. Mounting hardware is not included.

    Is this brake master cylinder made of aluminum?

    Yes. It is made of aluminum, and its rubber components are an EPDM compound that resists glycol-based brake fluid.

    What are the outlet thread sizes on this master cylinder?

    The rearward outlet is M12 x 1.0, the secondary outlet thread diameter is M12 x 1.0, and the primary outlet thread pitch is 1 mm. The bore diameter is 0.813 inch.

    Does the Dorman M630694 cross-reference to AE8Z2140A?

    Yes. AE8Z2140A is on the interchange list for Dorman M630694, so this master cylinder is a listed replacement for that number.
