Brake Master Cylinder for 2007-2013 Suzuki SX4 & More - Dorman M630726

$277.99
Dorman - First Stop Brake Master Cylinder M630726
Dorman - First Stop Brake Master Cylinder M630726 - view 2
Dorman - First Stop Brake Master Cylinder M630726 - view 3
Dorman - First Stop Brake Master Cylinder M630726 - view 4
Dorman - First Stop Brake Master Cylinder M630726
Dorman - First Stop Brake Master Cylinder M630726 - view 2
Dorman - First Stop Brake Master Cylinder M630726 - view 3
Dorman - First Stop Brake Master Cylinder M630726 - view 4

Vehicles this part fits
    Part number: M630726
    UPC: 885484160675
    Condition: New
    Weight: 3.78 LBS
    Item Package Quantity: 1
    $277.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Dorman - First Stop Brake Master Cylinder P/N:M630726
    Dorman - First Stop Brake Master Cylinder P/N:M630726
    $277.99
    $277.99

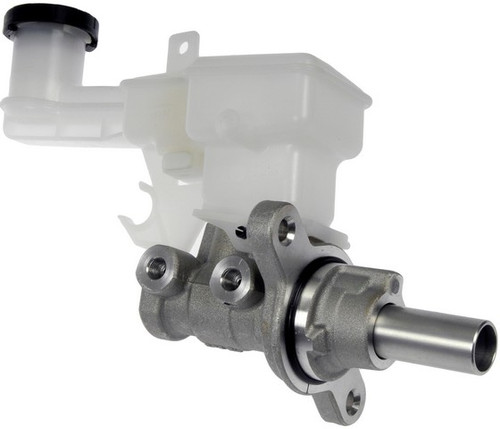

    Dorman M630726 brake master cylinder for the 2007-2013 Suzuki SX4 and other vehicles turns pedal force into hydraulic pressure for the brakes. It is a new part, built with an aluminum body and two outlets.

    • Part of the Dorman First Stop line
    • Aluminum master cylinder body
    • Rubber components made of EPDM compound for resistance to glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet rigorous SAE International standards
    • 0.875 in bore with M10 x 1.0 outlet threads

    Quick facts

    • Part: Dorman M630726 brake master cylinder
    • Fits: 2007-2013 Suzuki SX4 and other vehicles
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, fluid around the cylinder or a brake warning light can mean the master cylinder is failing. A leaking line or air in the system can also give a soft pedal, so with the engine off, look over the cylinder and lines for wet fluid first.

    Fits

    This brake master cylinder fits the 2007-2013 Suzuki SX4 and the 2012 Suzuki SX4 Crossover. The 2007-2013 Suzuki SX4 takes one, and this listing is one cylinder.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.875 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Reservoir: included
    • Sensor: included
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One brake master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new fasteners.

    Interchange: 100-1950 · 13-3801 · 11-3801 · 130.48028 · 355-01016
    NM55452 · MC391264 · 5110080J10 · F143634 · MC143634

    This part cross-references / interchanges with the following part numbers:

    100-1950, 13-3801, 11-3801, 130.48028, 355-01016, NM55452, MC391264, 5110080J10, F143634, MC143634

    Frequently Asked Questions

    Is this the right Suzuki SX4 master cylinder for 2007-2013 models?

    Yes. Dorman M630726 fits the 2007-2013 Suzuki SX4, and it also fits the 2012 Suzuki SX4 Crossover.

    Does the Dorman M630726 come with the reservoir and sensor?

    Yes. Dorman M630726 is one master cylinder with the reservoir and sensor included. Mounting hardware is not included.

    What size are the outlet threads on this master cylinder?

    The rearward outlet is M10 x 1.0 and the secondary outlet thread diameter is M10 x 1.0. The primary outlet thread pitch is 1 mm, and the bore is 0.875 in.

    Is this brake master cylinder aluminum, and what are its rubber parts made of?

    Yes, the body is aluminum. All rubber components are EPDM compound, which resists glycol-based brake fluid.

    Can I use Dorman M630726 in place of a part numbered 13-3801?

    Yes. 13-3801 is one of the numbers Dorman M630726 replaces, along with 11-3801 and 355-01016.
