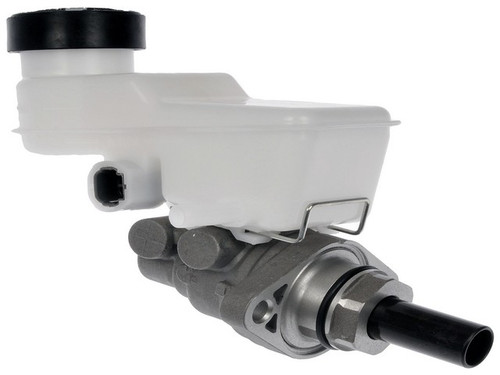

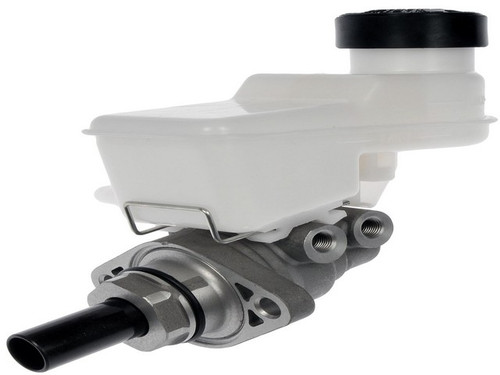

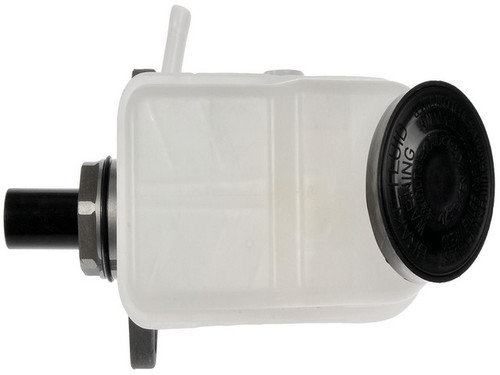

Convert pedal pressure into hydraulic braking force with the Dorman First Stop M630761, a new Toyota Echo brake master cylinder built as a direct-fit replacement for the 2000-2005 Toyota Echo and the 2004-2006 Scion XA, all engines. Dorman designed it to match the original master cylinder's design, function and performance on the listed applications. It is made from new, high-quality materials for a safe, durable replacement.
- Precise replacement: the aluminum cylinder housing is built to match the original part's casting material for similar performance.
- Durable design: every rubber component uses a high-quality EPDM compound that resists glycol-based brake fluid.
- 100% new: made entirely of new materials for quality and safety.
- Strict specifications: made to meet rigorous SAE International standards.
Specifications: single reservoir included; sensor included; two outlets; rearward and secondary outlet threads M10 x 1.0; primary outlet thread pitch 1 mm; 0.813 in bore diameter. Mounting hardware is not included. Country of origin: China.
Signs a master cylinder may need replacing include a soft or sinking brake pedal, brake fluid leaking from the unit, or a low brake fluid warning. Diagnose the cause before replacing parts. After installation, bleed the brake system as the vehicle service information directs.
Interchange: 100-1628 · 13-3547M · 11-3547 · 130.44502 · 355-76092
1001628 · 133547M · 113547 · 13044502 · 35576092 · MC391088 · 4720752011 · 4720752012 · F143161 · F143163 · MC143161 · MC143163
This part cross-references / interchanges with the following part numbers:
100-1628, 13-3547M, 11-3547, 130.44502, 355-76092, MC391088, 4720752011, 4720752012, F143161, F143163, MC143161, MC143163
