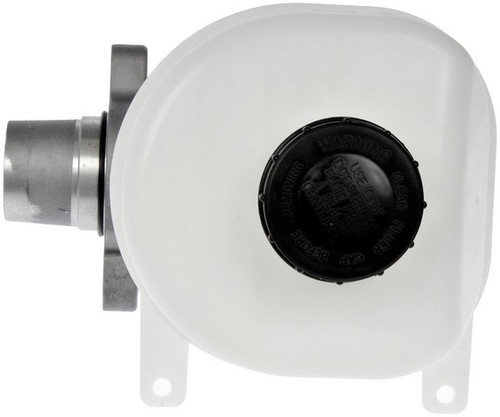

Dorman M630949 brake master cylinder for the 2013-2016 Ford F-250 Super Duty and other vehicles turns pedal force into hydraulic pressure for the brakes. Its design, function and performance are made to match the original master cylinder on these vehicles.
- Cast iron housing
- All rubber components are EPDM compound, which resists glycol-based brake fluid
- Made entirely of new materials
- Made to meet SAE International standards
- Single reservoir and sensor included
Quick facts
- Part: Dorman M630949 brake master cylinder
- Fits: 2013-2016 Ford F-250 Super Duty and other vehicles
- Material: Cast iron
- Condition: New
A soft or sinking brake pedal, a fluid leak near the cylinder or a falling fluid level can mean the master cylinder is wearing out. Brake lines, a leaking caliper or a worn hose can be behind the same signs, so track down the source before you order. The 2013-2016 Ford F-250 Super Duty takes one.
Fits
This master cylinder fits the 2013-2016 Ford F-250 Super Duty, the 2014-2016 Ford F-350 and the 2013-2016 Ford F-350 Super Duty.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 1.313 in
- Number of outlets: 2
- Rearward outlet size: M14 x 1.5
- Secondary outlet thread diameter: M12 x 1.5
- Primary outlet thread pitch: 1.5 mm
Build and materials
- Material: Cast iron
- Rubber components: EPDM compound
- Reservoir: single, included
- Sensor: included
- Condition: New
- Country of origin: Taiwan
In the box
One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new fasteners.
Interchange: 100-4107 · 10-4642 · 130.65143 · 355-54259
DC3Z2140D · NM4326 · MC391496
This part cross-references / interchanges with the following part numbers:
100-4107, 10-4642, 130.65143, 355-54259, DC3Z2140D, NM4326, MC391496
