Rear Drum Brake Wheel Cylinder for 1995-2023 Toyota Tacoma - Dorman W131480

$16.99

Dorman - First Stop Drum Brake Wheel Cylinder W131480

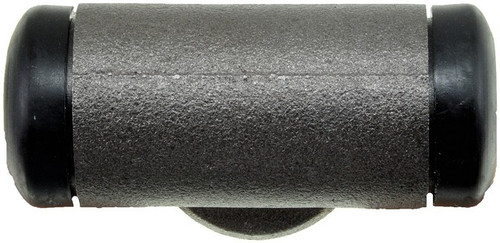

Dorman - First Stop Drum Brake Wheel Cylinder W131480 - view 2

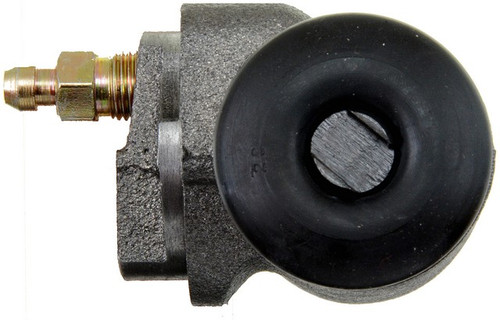

Dorman - First Stop Drum Brake Wheel Cylinder W131480 - view 3

$16.99

Current Stock: 151

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Part number: W131480

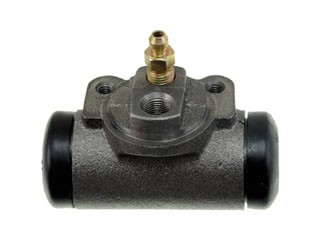

Dorman - First Stop Drum Brake Wheel Cylinder P/N:W131480

$16.99

Description

Turn hydraulic line pressure into the shoe-spreading force your rear drum brakes rely on with the Dorman - First Stop Drum Brake Wheel Cylinder (W131480). It installs as a direct-fit replacement for the 1995-2004 Toyota Tacoma [All] and the 2005-2023 Toyota Tacoma [All], mounting in the rear (rear right / rear left) drum-brake position. When brake fluid reaches the cylinder, its pistons push the brake shoes outward against the drum. A leaking or seized wheel cylinder is a common cause of a soft pedal, fluid on the backing plate, or uneven rear braking; if the original cylinder is the cause, this replaces it.

Cast-iron body: durable cylinder housing engineered to match the fit, function and performance of the original on the listed vehicles.
EPDM rubber cups and boots: high-quality sealing components for long-lasting performance.
Surface-tested bore: the wheel cylinder bore is surface-tested for an optimum sealing surface for the pressure cups.
Bleeder screw included: ships with a bleeder screw; a bleeder screw cap is not included. Inlet thread size M10 x 1.0; inside diameter 0.938 in.

Quantity varies by application: the 1995-2004 Tacoma uses one, while the 2005-2023 Tacoma uses two. Package contains one cylinder — replacing both rear sides together as a matched pair is good practice for even braking. Country of origin: China.

Interchange: 18E423 · W906759 · 072-9091 · 0729091 · 34131 · 34288 · 134.44706 · 135.44706 · 375-76028 · 37576028 · WC370032 · WC370183 · 4755004030 · 4755035180 · F131480 · MWMWC800013 · WC131480 · Manufacturer part number W131480

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

18E423, W906759, 072-9091, 34131, 34288, 134.44706, 135.44706, 375-76028, WC370032, WC370183, 4755004030, 4755035180, F131480, MWMWC800013, WC131480

Buyer's Q&A

Frequently Asked Questions

Does this wheel cylinder fit my Toyota Tacoma?

Yes — it's a direct-fit replacement for the 1995-2004 Toyota Tacoma [All] and the 2005-2023 Toyota Tacoma [All], in the rear drum-brake position. Check the "Vehicles it fits" section for your exact vehicle.

How many do I need for my truck?

The package contains one cylinder. The 1995-2004 applications use one; the 2005-2023 applications use two. Replacing both rear sides together as a matched pair is good practice for even braking.

Is a bleeder screw included?

Yes, a bleeder screw is included. A bleeder screw cap is not included.

What is it made of and what are its specs?

The body is cast iron, with EPDM rubber cups and boots. The bore is surface-tested for an optimum sealing surface for the pressure cups. Inlet thread size is M10 x 1.0 and inside diameter is 0.938 in.

What are signs the wheel cylinder may need replacing?

A soft or sinking brake pedal, brake fluid on the backing plate or drum, or uneven rear braking may point to a leaking or seized wheel cylinder. Diagnose the cause before replacing.
