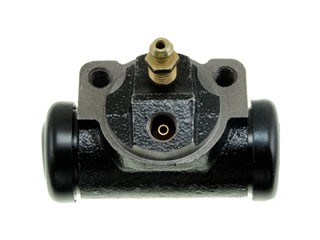

Restore firm, even rear drum braking on your classic Cadillac with the Dorman - First Stop Drum Brake Wheel Cylinder W37226. This drum brake wheel cylinder uses hydraulic brake-fluid pressure to push its pistons outward, pressing the brake shoes against the drum. It drops in as a direct-fit replacement for the 1968-1970 Cadillac Calais [All], 1968-1970 Cadillac DeVille [All], and 1968-1970 Cadillac Fleetwood [All], with these applications using 2 per vehicle.
- Cast-iron body: machined to a 0.813 in bore, with the wheel cylinder bore surface-tested for an optimum sealing surface for the pressure cups.
- EPDM rubber cups and boots: high-quality sealing components for long-lasting performance.
- Bleeder screw included (bleeder screw cap not included); 3/8-24 UNF inlet thread.
- Ideal replacement: engineered to drop in like the original drum brake wheel cylinder on the listed vehicles; manufactured and tested for quality assurance.
Signs this part may need replacing include brake fluid seeping at the wheel cylinder, a soft or sinking pedal, or sticking rear brakes. If a leaking or seized wheel cylinder is the cause, this replaces it. Sold individually; these applications use two, so order 2 for a complete rear axle.
Interchange: 84-36037 · 8436037 · W906325 · 101-1482 · 1011482 · W-82037 · W82037 · 33527 · 134.62037 · WC253800 · 375-46003 · 37546003 · 5467419 · WC37226 · F71208 · WC71208. Manufacturer part number W37226.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What vehicles does this wheel cylinder fit?
It's a direct-fit rear drum brake wheel cylinder for the 1968-1970 Cadillac Calais, 1968-1970 Cadillac DeVille, and 1968-1970 Cadillac Fleetwood. See the Buyer's Guide tab to confirm your vehicle.
How many do I need for my Cadillac?
It's sold individually, but these listed applications use two per vehicle, so order 2 to service both sides of the rear axle for even braking.
What is it made of?
The body is cast iron with a 0.813 in bore, and it uses high-quality EPDM rubber cups and boots for the sealing components.
Does it come with a bleeder screw?
Yes, the bleeder screw is included. The bleeder screw cap is not included. The inlet thread size is 3/8-24 UNF.
How do I know the wheel cylinder is failing?
Signs include brake fluid seeping at the cylinder, a soft or sinking pedal, or sticking rear brakes. Diagnose the cause first; if the wheel cylinder is at fault, this replaces it.
