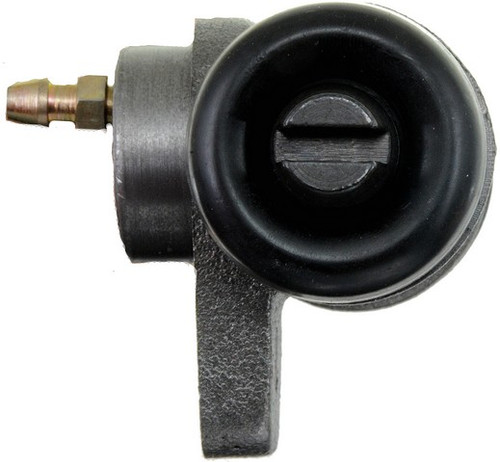

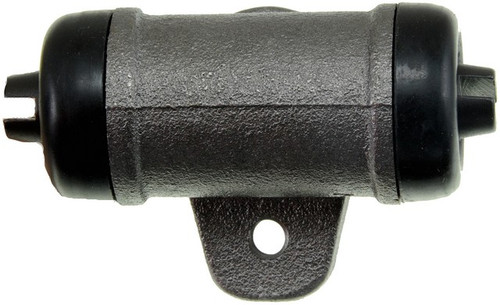

Dorman - First Stop Drum Brake Wheel Cylinder P/N:W37349

Rebuild your rear drum brakes with the Dorman First Stop Drum Brake Wheel Cylinder (W37349), a direct-fit rear wheel cylinder for a long run of rear-drum Volkswagen vans. It drops in on the 1972-2001 Volkswagen Combi, 1972-1979 and 1985-1991 Volkswagen Transporter, 1973-2001 Volkswagen Panel, 1977-1978 Volkswagen Hormiga, 1980-1991 Volkswagen Vanagon, and 1995-1996 Volkswagen Caravelle (All engines). Mounted in the rear drum brake, it uses hydraulic brake fluid pressure to push the brake shoes outward against the drum.

• Direct replacement: engineered to match the fit, function, and performance of the original rear wheel cylinder on the listed vehicles, then manufactured and tested for quality assurance.
• Quality materials: made with high-quality EPDM rubber cups and boots.
• Surface-tested bore: the wheel cylinder bore is surface-tested for an optimum sealing surface for the pressure cups.
• Specs: cast iron body, 0.938 in. inside diameter, M10 x 1.0 inlet thread; bleeder screw included (bleeder screw cap not included).

Signs the original may need replacing include brake fluid weeping at the wheel cylinder, damp or contaminated shoes, and a soft or sinking pedal. If a leaking or seized wheel cylinder is the cause, this replaces it. Each listed application uses two rear wheel cylinders (one per side); this listing supplies one, so order two to service both sides as a matched pair. Country of origin: China.

Interchange: 18E138 · 784-94201 · 78494201 · 784-98501 · 78498501 · 84-94201 · 8494201 · W906426 · W-20201 · W20201 · 072-8035 · 0728035 · 33679 · 134.33201 · 135.33201 · WC13679 · 375-74006 · 37574006 · 96387 · 2037349 · WC37349 · 211611047D · 211611047E · 211611047F · F96387 · WC96387
Manufacturer part number W37349.
