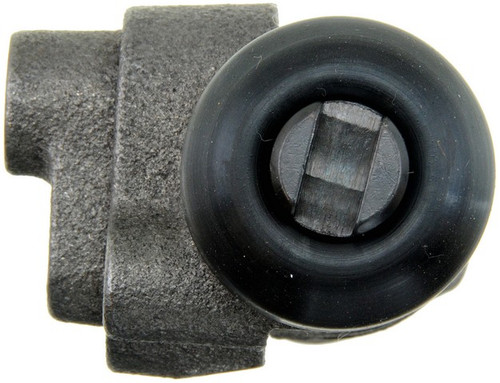

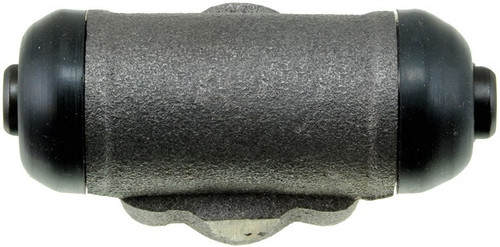

Keep hydraulic pressure flowing to the rear drum brake shoes with the Dorman First Stop Drum Brake Wheel Cylinder W610039. It installs as a rear right direct-fit replacement for the 1999-2008 Chevrolet Tracker, 1999-2005 Suzuki Grand Vitara, 1999-2004 Suzuki Vitara, and 2002-2006 Suzuki XL-7 (all engines).
Inside a drum brake, this wheel cylinder receives pressurized brake fluid and pushes its internal cups and pistons outward, forcing the brake shoes against the drum. If a leaking or seized original cylinder is behind a soft pedal or fluid seepage at the backing plate, this replaces it.
- Direct-fit design: engineered to match the original wheel cylinder's fit, function, and performance on the listed vehicles.
- Cast iron construction: with a 0.875 in inside-diameter bore and an M10 x 1.0 inlet thread (10 mm thread diameter, 1.0 pitch).
- EPDM rubber cups and boots: high-quality sealing components for long-lasting performance.
- Surface-tested bores: checked to provide an optimum sealing surface for the pressure cups; the bleeder screw and bleeder screw cap are not included.
Replacing the wheel cylinder while servicing the drum brakes is a quick, cost-effective way to help maintain proper brake performance. Country of origin: China.
Interchange: 172-2258 · 1722258 · 174-1091 · 1741091 · P3616 · P3623 · W-50013 · W50013 · 072-9480 · 0729480 · 34236 · 134.48013 · 135.48013 · WC250460 · 375-01002 · 37501002 · 91174800 · 91175623 · WC370074 · WC370095 · WC370159 · 5340165D00 · 5340167D00 · F129464 · WC129464 · Manufacturer part number W610039
This part cross-references / interchanges with the following part numbers:
172-2258, 174-1091, P3616, P3623, W-50013, 072-9480, 34236, 134.48013, 135.48013, WC250460, 375-01002, 91174800, 91175623, WC370074, WC370095, WC370159, 5340165D00, 5340167D00, F129464, WC129464
