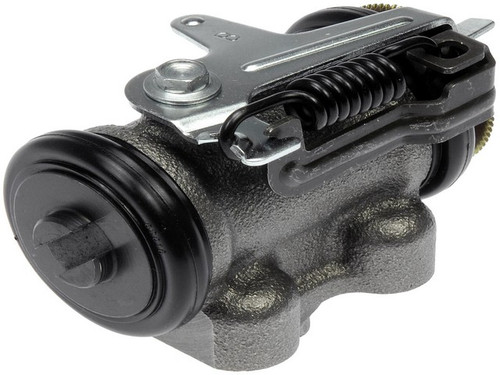

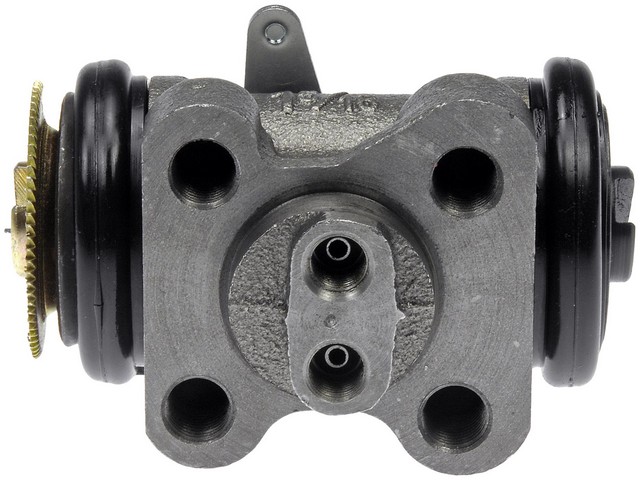

Turn brake-line hydraulic pressure into the mechanical force that pushes your drum brake shoes with the Dorman - First Stop Drum Brake Wheel Cylinder W610186. Cataloged for the rear right, rearward position, it's engineered to drop in like the original wheel cylinder on a range of Chevrolet, GMC and Isuzu cab-forward trucks, and it's manufactured and tested for quality assurance.
- Cast iron body: the cylinder bore is surface-tested for an optimum sealing surface for the pressure cups.
- EPDM rubber cups and boots: made with high-quality EPDM rubber for long-lasting sealing performance.
- 1.313 in bore: inside diameter of 1.313 in, with (2) M10 x 1.0 inlet threads.
- Bleeder hardware not included: a bleeder screw and bleeder screw cap are not included; consult the vehicle service information for the correct bleeder hardware.
A wheel cylinder uses hydraulic pressure from the brake line to press the shoes outward against the drum. If a failed or leaking wheel cylinder is the cause of a soft pedal, fluid seepage behind the drum, or reduced braking, this unit replaces it—diagnose the cause first. Replacing the cylinder while servicing drum brakes is a fast, cost-effective way to help maintain brake performance.
Fitment (engine code shown verbatim):
- 2004-2010 Chevrolet W4500 Tiltmaster [All]
- 2004-2010 Chevrolet W5500 Tiltmaster [All]
- 2004-2010 GMC W4500 Forward [All]
- 2004-2010 GMC W5500 Forward [All]
- 2004-2009 Isuzu NPR-HD [All]
- 2004-2016 Isuzu NQR [All]
- 2009 Chevrolet W5500HD Tiltmaster [All]
- 2009 GMC W5500HD Forward [All]
- 2012-2016 Isuzu NPR-HD [All]
- 2016-2017 Chevrolet LCF 4500 [All]
- 2017 Chevrolet LCF 4500XD [All]
- 2017 Chevrolet LCF 5500HD [All]
See the Buyer's Guide tab for the complete list.
Interchange: 134.76044 · 375-47097 · 37547097 · 97358879 · 8973588790 · WC370236 · Manufacturer part number W610186
This part cross-references / interchanges with the following part numbers:
134.76044, 375-47097, 97358879, 8973588790, WC370236
