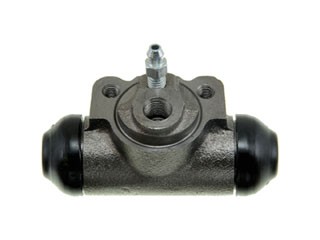

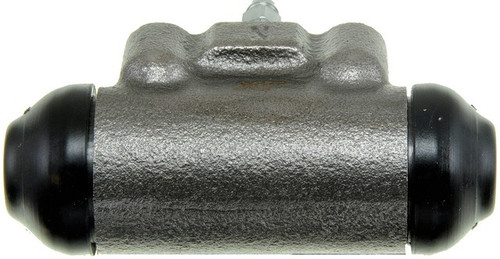

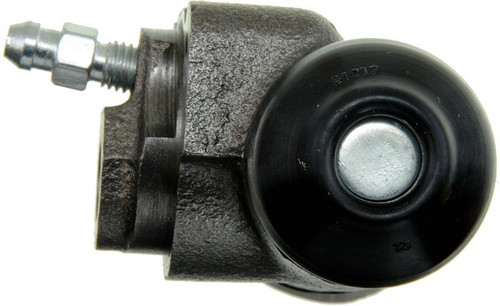

Push your rear brake shoes firmly against the drum with the Dorman - First Stop Drum Brake Wheel Cylinder (MPN W96718). Mounted in the rear drum brakes, this wheel cylinder uses hydraulic pressure from the brake line to drive its pistons outward against the brake shoes. It's engineered to match the original wheel cylinder's fit, function and performance on the listed vehicles: 1971-1974 Toyota Celica [All], 1971-1974 Toyota Corolla [All], and 1972-1973 Toyota Carina [All] — these applications use 2 per vehicle.
- Cast iron body: the bore is surface-tested to provide an optimum sealing surface for the pressure cups.
- EPDM rubber cups and boots: high-quality sealing components for long-lasting performance.
- Bleeder screw included: a bleeder screw is supplied; a bleeder screw cap is not included.
- Specs: 0.75 in inside diameter bore; M10 x 1.0 inlet thread (10 mm thread diameter, 1.0 pitch).
Signs this part may need replacing include brake fluid weeping behind the drum, a soft or sinking pedal, or shoes that drag or grab. If a leaking or seized wheel cylinder is the cause, replacing it while servicing the drum brakes is a fast, sure way to keep the hydraulic system sealed. Country of origin: China. Package contents: 1 drum brake wheel cylinder.
Interchange: 784-22100 · 78422100 · 84-22100 · 8422100 · W906363 · 101-1197 · 1011197 · W-56100 · W56100 · 072-3239 · 0723239 · 33739 · 34625 · 134.44100 · 135.44100 · WC254030 · 375-76010 · 37576010 · WC37276 · 4755012050 · 4755019125 · 4755029105 · 4755029106 · F96718 · WC96718. Manufacturer part number W96718.
This part cross-references / interchanges with the following part numbers:
784-22100, 84-22100, W906363, 101-1197, W-56100, 072-3239, 33739, 34625, 134.44100, 135.44100, WC254030, 375-76010, WC37276, 4755012050, 4755019125, 4755029105, 4755029106, F96718, WC96718
Frequently Asked Questions
What does this wheel cylinder do?
It sits in the rear drum brakes and uses hydraulic pressure from the brake line to push its pistons outward, forcing the brake shoes against the drum.
Which vehicles does it fit?
It's a direct-fit replacement for the 1971-1974 Toyota Celica [All], 1971-1974 Toyota Corolla [All], and 1972-1973 Toyota Carina [All]. See the "Vehicles it fits" section to confirm your vehicle.
Does it include a bleeder screw?
Yes, a bleeder screw is included. A bleeder screw cap is not included.
What are the bore and thread specs?
It has a 0.75 in inside diameter bore and an M10 x 1.0 inlet thread (10 mm thread diameter, 1.0 pitch).
How many do I need?
The listed applications use 2 per vehicle. This listing is for one cylinder (package contents: 1); order the quantity your vehicle requires and replace both sides together for balanced braking.
