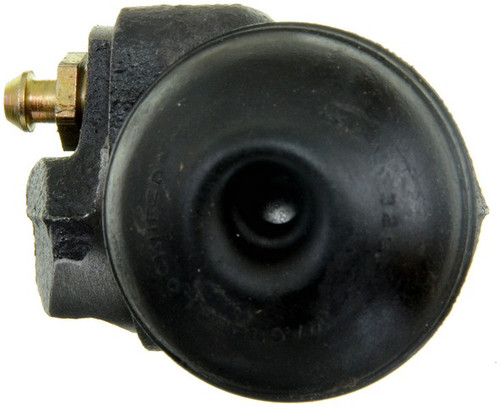

Dorman - First Stop Drum Brake Wheel Cylinder W9696 - view 2
Dorman - First Stop Drum Brake Wheel Cylinder W9696 - view 3
Dorman - First Stop Drum Brake Wheel Cylinder W9696
Dorman - First Stop Drum Brake Wheel Cylinder W9696 - view 2
Dorman - First Stop Drum Brake Wheel Cylinder W9696 - view 3

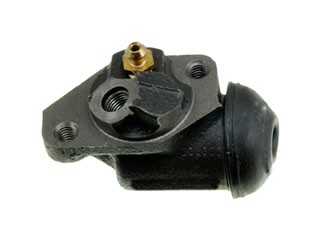

Dorman - First Stop Drum Brake Wheel Cylinder P/N:W9696

Be the first to review this product
$59.99
MPN: W9696
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Dorman - First Stop Drum Brake Wheel Cylinder P/N:W9696
Dorman - First Stop Drum Brake Wheel Cylinder P/N:W9696
$59.99

Send firm hydraulic pressure to your drum brake shoes with the Dorman - First Stop Drum Brake Wheel Cylinder (W9696). Mounted at the front-right wheel, this cylinder converts brake-fluid pressure into mechanical force, driving its pistons outward to press the drum brake shoes against the drum. It drops in as a direct-fit replacement built to match the original wheel cylinder's fit, function and performance on the 1950-1952 INTERNATIONAL L130, 1953-1955 INTERNATIONAL R130, 1956-1957 INTERNATIONAL S130, 1959-1960 INTERNATIONAL B130, 1968-1971 INTERNATIONAL MA1200, and 1971 INTERNATIONAL M1200 [All].

  • Cast-iron body: machined with a 1 in inside diameter and a 7/16-20 UNF inlet thread (7/16 thread diameter).
  • EPDM rubber cups and boots: made with high-quality EPDM rubber for long-lasting sealing.
  • Surface-tested bore: the cylinder bore is surface-tested to provide an optimum sealing surface for the pressure cups.
  • Bleeder screw included: a bleeder screw is included; a bleeder screw cap is not included.

Replacing the wheel cylinder while you service the drum brakes is a fast, cost-effective way to help keep the hydraulics sealed. Each order includes one drum brake wheel cylinder. Country of origin: China.

Interchange: W906054 · 134.70018 · 1669912 · WC256150 · 375-71015 · 37571015 · 5461461 · 87913R91 · WC9696 · F9696
Manufacturer part number W9696.

This part cross-references / interchanges with the following part numbers:

W906054, 134.70018, 1669912, WC256150, 375-71015, 5461461, 87913R91, WC9696, F9696

Frequently Asked Questions

What does this wheel cylinder do?

It converts brake-fluid pressure into mechanical force, pushing its pistons outward to press the drum brake shoes against the drum during braking.

Will this fit my vehicle?

It's a direct-fit front-right replacement for the listed INTERNATIONAL L130, R130, S130, B130, MA1200, and M1200 models. Check the Buyer's Guide tab to confirm your exact year and model.

Is a bleeder screw included?

Yes, a bleeder screw is included. A bleeder screw cap is not included.

What is it made of and what size is it?

The body is cast iron with EPDM rubber cups and boots. It has a 1 in inside diameter and a 7/16-20 UNF inlet thread (7/16 thread diameter).

What are signs the wheel cylinder may need replacing?

Brake fluid leaking at the drum, damp brake shoes, a low or spongy pedal, or uneven drum braking can be signs. Diagnose the cause before replacing, as other parts may be involved.
