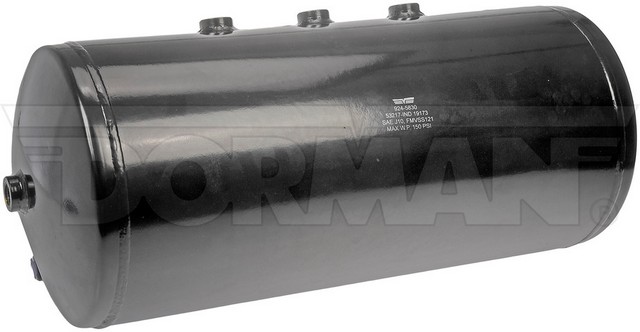

Dorman 924-5830 air brake reservoir for the 1995-2005 Peterbilt 330 stores compressed air for the air-actuated brakes and suspension. If the tank is corroded or leaking, this reservoir replaces it.
- Part of the Dorman HD Solutions line
- Carbon steel tank with 0.13 in material thickness
- Corrosion-resistant coating inside and outside
- Salt spray chamber tested inside and out to meet or exceed the industry standard for corrosion resistance
- Seven ports at precise locations, with 1/4 in and 1/2 in port thread diameters
Quick facts
- Part: Dorman 924-5830 air brake reservoir
- Fits: 1995-2005 Peterbilt 330
- Material: Carbon steel
- Condition: New
Rust, corrosion or air escaping from the tank body can mean the reservoir has reached the end of its life. Air loss alone does not prove the tank is at fault, since a leaking air line fitting is another common cause. A shop can pressure-test the system.
Fits
This reservoir is a direct replacement for the 1995-2005 Peterbilt 330, with the same port configuration and physical dimensions as the original tank. The 1995-2005 Peterbilt 330 takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Capacity: 28 L
- Length: 24 in
- Diameter: 10 in
- Material thickness: 0.13 in
- Port quantity: 7
- Port thread diameter: 1/4 in and 1/2 in
- Mounting type: Strap on
Build and materials
- Air tank type: Tractor
- Material: Carbon steel
- Coating: Corrosion-resistant, inside and outside
- Chambers: 1
- Maximum working pressure: 150 PSI
- Condition: New
- Country of origin: India
In the box
One air brake reservoir. Mounting hardware, a threaded mounting bracket and a valve are not included, so plan on new mounting hardware, since the old pieces may not be reusable.
Interchange: 172.2348
0802348
Frequently Asked Questions
Is the Dorman 924-5830 air brake reservoir right for a 1995-2005 Peterbilt 330?
Yes. Dorman 924-5830 fits the 1995-2005 Peterbilt 330, and the truck takes one. It has the same port configuration and physical dimensions as the original tank.
Does the 924-5830 air brake reservoir come with a valve or mounting bracket?
No. The box holds one air brake reservoir. Mounting hardware, a threaded mounting bracket and a valve are not included.
What is the capacity and working pressure of Dorman 924-5830?
Dorman 924-5830 holds 28 L and has a maximum working pressure of 150 PSI. The tank measures 24 in long and 10 in in diameter.
Is this air brake reservoir coated to resist rust inside the tank?
Yes. The carbon steel tank has a corrosion-resistant coating inside and outside, and it was salt spray chamber tested internally and externally for corrosion resistance.
Is 172.2348 an interchange number for this air brake reservoir?
Yes. 172.2348 and 0802348 are both listed interchange numbers for Dorman 924-5830.
