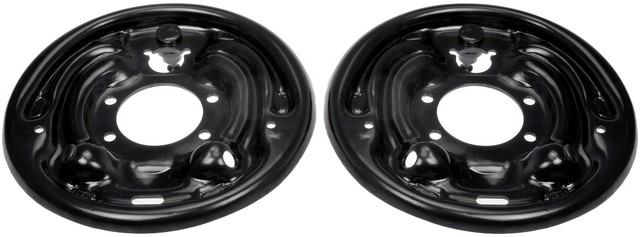

Dorman 924-656 rear brake backing plate for the 1995-2009 Ford Ranger mounts the rear drum brake parts and works as a Dorman brake dust shield.
- Provides structure for the other braking system components and helps keep debris from entering
- Rust-resistant coating for harsh winter weather and humidity
- Corrosion-resistant steel construction that protects the brakes from the elements and debris
- Dimensional verification and salt spray testing of the backing plate
- Part of the Dorman OE Solutions line
Quick facts
- Part: Dorman 924-656 brake backing plate
- Also called: brake dust shield
- Fits: 1995-2009 Ford Ranger
- Position: Rear
- Material: Steel
- Condition: New
Heavy rust, a bent plate or scraping from the rear drum brakes can mean a backing plate has deteriorated, and the original plate is highly prone to that. Before you replace it, rule out worn shoes, a damaged drum or a leaking wheel cylinder as the source of the noise.
Fits
This is a brake backing plate for the 1995-2009 Ford Ranger rear drum brakes, and it replaces the original part directly. The 1995-2009 Ford Ranger takes two, and this listing holds the pair.
Specifications
Fit and size
- Position: Rear
- Brake type: Drum
- Pieces per listing: 2 (one pair)
- Maximum diameter: 262 mm
- Inside diameter: 72 mm
- Thickness: 34.4 mm
- Mounting hole diameter: 9.5 mm
- Mounting holes: 4
- Lug holes: 4
- Wheel cylinder mount hole diameter: 6.5 mm
- Wheel cylinder mount holes: 2
Build and materials
- Material: Steel
- Construction: One piece
- Rust resistant: Yes
- Shoe anchor stud: Not attached
- Condition: New
- Country of origin: India
In the box
Two brake backing plates. Mounting hardware is not included, so plan on new hardware.
Interchange: F57Z2211B · F57Z2212B
Frequently Asked Questions
Are these brake dust shields right for the 1995-2009 Ford Ranger?
Yes. Dorman 924-656 is a pair of rear drum brake backing plates listed for the 1995-2009 Ford Ranger.
Does the Dorman brake backing plate come with mounting hardware?
No. Dorman 924-656 comes as two one-piece plates, and mounting hardware is not included. The shoe anchor stud is not attached either.
What diameters and thickness do these rear backing plates have?
Dorman 924-656 has a 262 mm maximum diameter, a 72 mm inside diameter and a thickness of 34.4 mm. The mounting holes are 9.5 mm and the wheel cylinder mount holes are 6.5 mm.
Is this Dorman dust shield made of steel?
Yes. This rear backing plate is steel with a rust-resistant coating, and it has undergone salt spray testing.
What are the signs of a damaged rear backing plate?
Heavy rust, holes, a bent plate or scraping from the rear drum brakes can mean the plate is damaged. A shop can inspect it during a rear brake service.
