Rear Drive Shaft for 2014-2018 Ram 4500 & More - Dorman 946-500

$1,260.99

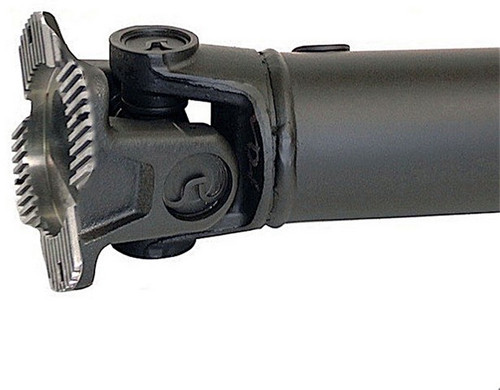

Dorman - OE Solutions Drive Shaft 946-500

Dorman - OE Solutions Drive Shaft 946-500 - view 2

Dorman - OE Solutions Drive Shaft 946-500 - view 3

Dorman - OE Solutions Drive Shaft 946-500 - view 4

Part number: 946-500

UPC: 885484439108

Condition: New

Weight: 96.50 LBS

Item Package Quantity: 1

$1,260.99

Current Stock: 5

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Dorman - OE Solutions Drive Shaft P/N:946-500

$1,260.99

Description

The Dorman 946-500 rear drive shaft for the 2014-2018 Ram 4500 and 2014-2018 Ram 5500 with the 6.4L V8 is a 2-piece steel assembly that carries engine power back to the rear axle.

Arrives fully assembled and dynamically pre-balanced, ready for a fast install.
Drawn over mandrel (DOM) steel tubing with no weld seam gives better concentricity and a uniform wall thickness.
DOM tubing has more torsional strength and dent resistance than standard welded steel.
Built with all-new tubing, yokes and U-joints.
Ships in foam-in-place packaging so it reaches you in install-ready condition.
Part of the Dorman OE Solutions line.

A worn drive shaft can cause a vibration that grows with road speed, a clunk when you shift into gear or a squeaking U-joint. With the engine off and cool, look from the side for a dented tube or grease thrown from a joint. Worn tires, a carrier bearing or the rear axle can feel similar, so find where the vibration starts before replacing the drive shaft.

It fits the 2014-2018 Ram 4500 and 2014-2018 Ram 5500 4x4 Cab & Chassis with a conventional cab, the 6.4L V8 and a wheelbase of about 168.5-169 in, and each truck takes one. It is not listed for 2WD trucks, other wheelbases or the 6.7L diesel.

Specifications

Fit and size

Position: Rear
Length: 86.36 in
Shaft diameter: 4 in
Wall thickness: 0.095 in
End types: bolt-on at both ends
Overall length adjustable: Yes
Quantity per vehicle: 1

Build and materials

Type: 2-piece drive shaft assembly
Shaft material: Steel (DOM tubing)
Slip yoke: Yes
Greaseable: Yes
Grade: Standard replacement
Condition: New
Country of origin: United States

In the box

One rear drive shaft assembly
Not included: CV joints, axle nut

Interchange: 5146609AA · 5146609AB

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

5146609AA, 5146609AB

Buyer's Q&A

Frequently Asked Questions

Will the Dorman 946-500 fit a 2014-2018 Ram 5500 with the 6.7L diesel?

No. The Dorman 946-500 is listed for the 2014-2018 Ram 4500 and 2014-2018 Ram 5500 4x4 Cab & Chassis with the 6.4L V8 and a wheelbase of about 168.5-169 in, not the 6.7L diesel or 2WD trucks.

How long is this Dorman drive shaft?

This rear drive shaft is 86.36 in long, with a 4 in shaft diameter and a 0.095 in wall thickness, and its slip yoke lets the overall length adjust.

Does the Dorman 946-500 drive shaft come with CV joints or an axle nut?

No. The Dorman 946-500 ships as one rear drive shaft assembly; CV joints and an axle nut are not included.

Can a bad rear drive shaft cause vibration at highway speed?

Yes. A bent or out-of-balance rear drive shaft or worn U-joints can cause a vibration that rises with speed, so have it inspected or replaced promptly.

Is this Dorman OE Solutions drive shaft greaseable?

Yes. This rear drive shaft is greaseable, and it arrives fully assembled and dynamically pre-balanced.
