Dorman 318-032 engine control module (ecm) for the 2006 Chrysler Pacifica V6 3.5L processes sensor inputs to control the engine's ignition and fueling. This remanufactured unit is tested to meet original equipment performance.
- Remanufactured and tested in a dedicated facility for durability
- Functionality tested, including hot and cold chamber testing
- 152 male pin terminals across 4 female rectangular connectors
Quick facts
- Part: Dorman 318-032 engine control module (ecm)
- Fits: 2006 Chrysler Pacifica V6 3.5L
- Condition: Remanufactured
A no-start, stalling or a check engine light can mean the module is failing. Before you replace it, rule out wiring faults, a weak battery and sensor problems, which can produce those symptoms as well; a shop can test the module.
Fits
It is a direct-fit replacement for the 2006 Chrysler Pacifica V6 3.5L, which takes one module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminal quantity: 152, male pin

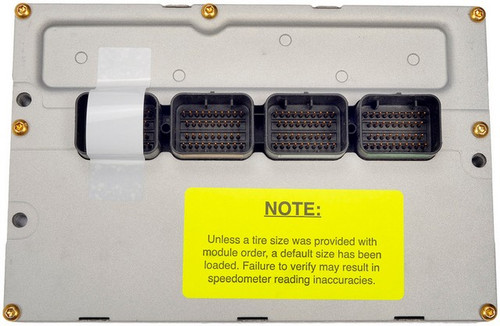

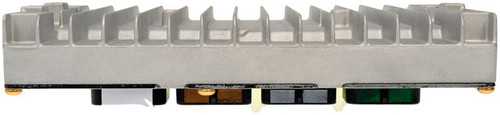

- Connector quantity: 4, female, rectangular, black

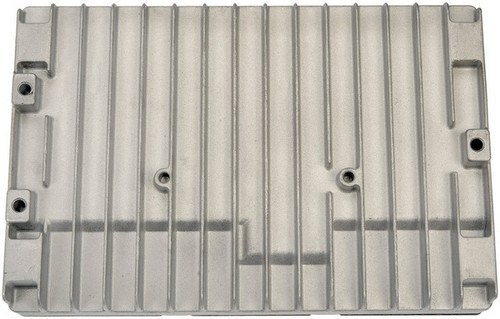

- Mounting hole quantity: 3
Build and materials
- Condition: Remanufactured
- Flashable: Yes
- Flash programming required: No
- Removable PROM: No
- Country of origin: United States
In the box
One engine control module and one instruction sheet. The wire harness and mounting hardware are not included; plan on new fasteners, since the old ones may not be reusable.
Installation notes
- Flash programming is not required.
- The included instruction sheet covers the installation steps.
Interchange: 04727541AB · 04727541AC · 04727541AD · 04727542AC · 04727542AD · 04727542AE · 04727542AF · 04727542AH · 04727543AC · 04727543AD · 04727543AE · 04727543AF · 04727543AH · R4727541AD
This part cross-references / interchanges with the following part numbers:
04727541AB, 04727541AC, 04727541AD, 04727542AC, 04727542AD, 04727542AE, 04727542AF, 04727542AH, 04727543AC, 04727543AD, 04727543AE, 04727543AF, 04727543AH, R4727541AD
Frequently Asked Questions
Is the Dorman 318-032 the right engine control module for a 2006 Chrysler Pacifica V6 3.5L?
Yes. Dorman 318-032 fits the 2006 Chrysler Pacifica V6 3.5L, which takes one module.
Does the Dorman 318-032 come with a wire harness?
No. This engine control module comes with an instruction sheet only; the wire harness and mounting hardware are not included.
Do I need to flash program this remanufactured engine control module?
No. Dorman 318-032 does not require flash programming, though it is flashable and has no removable PROM.
How many terminals and connectors does this engine control module have?
It has 152 male pin terminals and 4 black, rectangular, female connectors, plus 3 mounting holes.
Does Dorman 318-032 replace OE number 04727541AB?
Yes. 04727541AB is one of the numbers this module replaces; the Interchange line on the page lists the others.
