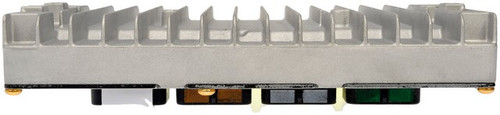

Dorman 318-242 engine control module (ecm) for the 2003 Chrysler PT Cruiser 4-cylinder 2.4L processes sensor inputs to control ignition and fueling. This remanufactured unit is tested to meet original equipment performance.
- Remanufactured in a dedicated facility and tested to ensure durability
- Tested for functionality, including hot and cold chamber testing
- Flashable module with no removable PROM
- 152 male pin terminals in four female rectangular connectors
Quick facts
- Part: Dorman 318-242 engine control module (ecm)
- Fits: 2003 Chrysler PT Cruiser 4-cylinder 2.4L
- Condition: Remanufactured
Hard starting, stalling or a lit check engine light can mean the engine control module is failing, but a faulty crankshaft position sensor or a damaged wire at the connector can be behind the same complaint, so trace the cause before replacing the module.
Fits
It is also listed as a powertrain control module for the 2003 Chrysler PT Cruiser 4-cylinder 2.4L (L4-2.4L), and each car takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 3
- Terminals: 152, male pin
- Connectors: 4, female, rectangular, black
Build and materials
- Condition: Remanufactured
- Flashable: Yes
- Removable PROM: No
- Country of origin: United States
In the box
One engine control module and one instruction sheet. The wiring harness and mounting hardware are not included, so plan on new mounting bolts rather than reusing old ones.
Installation notes
- No flash programming is required.
- The instruction sheet covers the installation steps.
Interchange: 5033194AD · 5033194AE · 5033194AF · 5033194AG · 5033194AH · 5033194AI · 5033194AJ · 5033194AK · R5033194AK · RL033194AK
This part cross-references / interchanges with the following part numbers:
5033194AD, 5033194AE, 5033194AF, 5033194AG, 5033194AH, 5033194AI, 5033194AJ, 5033194AK, R5033194AK, RL033194AK
Frequently Asked Questions
Is the Dorman 318-242 the right module for a 2003 Chrysler PT Cruiser 4-cylinder 2.4L?
Yes. Dorman 318-242 is listed for the 2003 Chrysler PT Cruiser 4-cylinder 2.4L (L4-2.4L), and each car takes one.
Does the Dorman 318-242 module come with a wiring harness?
No. Dorman 318-242 is one remanufactured engine control module with an instruction sheet. The wiring harness and mounting hardware are not included.
How many pins does this engine control module have?
This engine control module has 152 male pin terminals spread across four black rectangular female connectors, plus three mounting holes.
Does this ECM need flash programming before it will run?
No. Flash programming is not required, though the module is flashable and has no removable PROM.
How is this remanufactured engine control module tested?
The module is remanufactured and checked in a dedicated facility. Its functionality testing includes hot and cold chamber runs.
