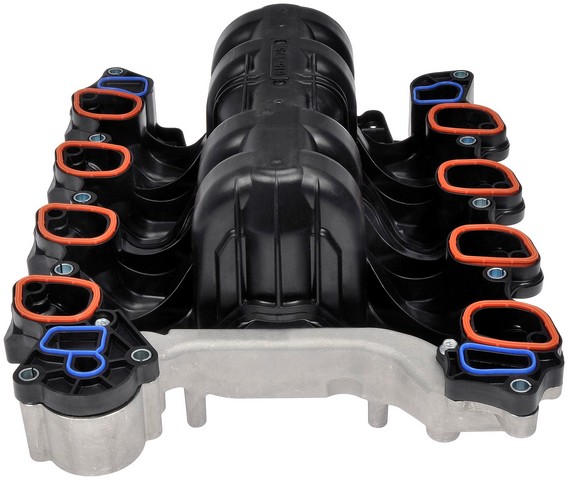

Dorman 615-775 upper intake manifold for the 2002-2005 Ford Explorer V8 4.6L and other vehicles distributes intake air to the engine's cylinders. This Dorman intake manifold is built to the original part's specifications for a trouble-free installation.
- Plastic body with 8 ports
- Alternator mount on the manifold
- Standard replacement grade and street legal
- Tested for build quality and reliability
Quick facts
- Part: Dorman 615-775 intake manifold
- Also called: engine intake manifold
- Fits: 2002-2005 Ford Explorer V8 4.6L and other vehicles
- Position: Upper
- Material: Plastic
- Condition: New
Rough idle, a hiss from an air leak or a visible crack in the plastic body can mean the manifold is worn, though a loose vacuum hose or a leaking throttle body gasket can be behind the same signs. A shop can pressure-test for leaks.
Fits
As an upper intake manifold, it also fits the 1999-2004 Ford Mustang V8 4.6L and the 2001-2011 Ford Crown Victoria V8 4.6L.
Specifications
Fit and size
- Position: Upper
- Quantity per vehicle: 1
- Manifold height: 14.5 in
- Port outlet dimensions: 61 mm x 46 mm
- Port quantity: 8
Build and materials
- Material: Plastic
- Condition: New, standard replacement grade
- Alternator mount: Yes
- EGR ready: No
- Street legal: Yes
- Country of origin: China
In the box
One intake manifold, one thermostat, one thermostat O-ring, one bracket and 16 self-tapping screws. This listing is one manifold, and the vehicle takes one.
Installation notes
- Installation instructions are included with the part.
Interchange: 8456086231229246 · 8456086231229270 · 106007 · 106085 · FD1413042 · FD1414477 · 1L2Z9424FA · 1W7Z9424AB · 2L2Z9424A · 2L2Z9424AB · 3W7Z9424AA · 3W7Z9424AD · 3W7Z9424AE · 6W7Z9424AA · 9W7Z9424A · PU7Z9424A · SK615175 · SK615775 · 615175
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
8456086231229246, 8456086231229270, 106007, 106085, FD1413042, FD1414477, 1L2Z9424FA, 1W7Z9424AB, 2L2Z9424A, 2L2Z9424AB, 3W7Z9424AA, 3W7Z9424AD, 3W7Z9424AE, 6W7Z9424AA, 9W7Z9424A, PU7Z9424A, SK615175, SK615775, 615175
Frequently Asked Questions
Is Dorman 615-775 a Mustang intake manifold for the 1999-2004 Ford Mustang V8 4.6L?
Yes. Dorman 615-775 is an upper intake manifold listed for the 1999-2004 Ford Mustang V8 4.6L. If your car is a different model, look for it in the "Vehicles it fits" section.
Is this a Crown Victoria intake manifold for the 2001-2011 Ford Crown Victoria V8 4.6L?
Yes. This upper manifold is listed for the 2001-2011 Ford Crown Victoria V8 4.6L, and the car takes one.
Does this engine intake manifold come with the thermostat?
Yes. Dorman 615-775 comes with a thermostat and a thermostat O-ring, plus one bracket and 16 self-tapping screws.
What are the port outlet dimensions on this Dorman 4.6L intake manifold?
The port outlet dimensions on this plastic manifold are 61 mm x 46 mm, and it has 8 ports. Its manifold height is 14.5 in.
Do installation instructions come with a Dorman intake manifold for a Ford 4.6L V8?
Yes. Dorman 615-775 ships with installation instructions, so the steps come from that sheet.
