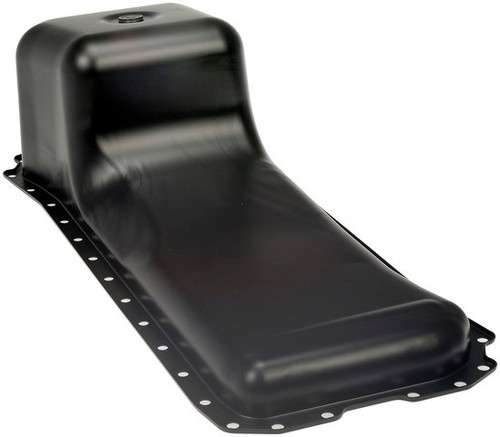

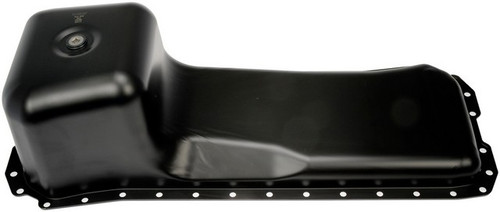

Dorman 264-059 oil pan for the 1994-2002 Dodge Ram 2500 6-cylinder 5.9L and other vehicles is a steel wet-sump pan that holds the engine's oil supply. Made to match the original pan on the vehicles it fits, it replaces a leaking or damaged pan.
- Steel pan with a high-strength coating to resist corrosion
- Complete assembly with the replacement pan and drain plugs
- Wet sump design with the sump at the rear
- Holds 10 U.S. quarts; drain thread is M18-1.5
Quick facts
- Part: Dorman 264-059 oil pan
- Also called: engine oil pan
- Fits: 1994-2002 Dodge Ram 2500 6-cylinder 5.9L and other vehicles
- Material: Steel
- Condition: New
Oil spots under the truck or a dented, rusted pan can point to a pan that needs replacing. Before you replace the pan, rule out other oil leak sources, such as the drain plug seal or the rear main seal, because oil from higher up can run down onto the pan.
Fits
It fits the 1994-2002 Dodge Ram 2500 6-cylinder 5.9L and the 1994-2002 Dodge Ram 3500 6-cylinder 5.9L, and each truck takes one pan. This listing is a single pan.
Specifications
Fit and size
- Quantity per vehicle: 1
- Sump location: rear
- Length: 32.4 in
- Maximum width: 13.5 in
- Depth: 8.5 in minimum, 8.5625 in maximum
- Capacity: 10 U.S. quarts
- Drain thread size: M18-1.5
Build and materials
- Material: steel
- Coating: high-strength corrosion-resistant coating
- Sump type: wet
- Drain plug: included
- Baffle, dipstick port and oil level sensor port: none
- Condition: new
- Country of origin: China
In the box
One oil pan with its drain plug. Gasket or seal, installation hardware, pickup, windage tray and crankshaft wiper are not included; plan on new bolts, since the old ones may not be reusable.
Interchange: 3310201 · 4761330 · 4762073 · 5080632AA · CRP35A · OP37653
This part cross-references / interchanges with the following part numbers:
3310201, 4761330, 4762073, 5080632AA, CRP35A, OP37653
Frequently Asked Questions
Is this the oil pan for a 1994-2002 Dodge Ram 2500 6-cylinder 5.9L?
Yes. Dorman 264-059 fits the 1994-2002 Dodge Ram 2500 6-cylinder 5.9L, and the 1994-2002 Dodge Ram 3500 6-cylinder 5.9L takes it as well.
Does this Dorman oil pan come with a drain plug and gasket?
It comes with the drain plug, but no gasket or seal and no installation hardware. Plan on a gasket and new bolts.
How many quarts does the Dorman 264-059 oil pan hold?
Dorman 264-059 has a 10 U.S. quart capacity. It is 32.4 in long, 13.5 in wide and 8.5 to 8.5625 in deep, with an M18-1.5 drain thread.
How do I tell if my engine oil pan is leaking?
With the engine off and cool, look for wet oil, dents or rust on the pan and around the drain plug. Oil from higher up can also wet the pan, so a shop can find the real source.
Is the steel on this oil pan coated?
Yes. The steel pan has a high-strength coating to resist corrosion.
