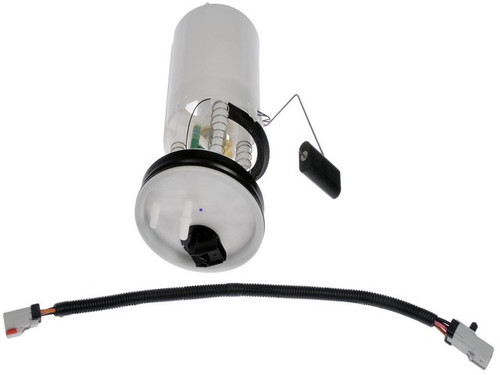

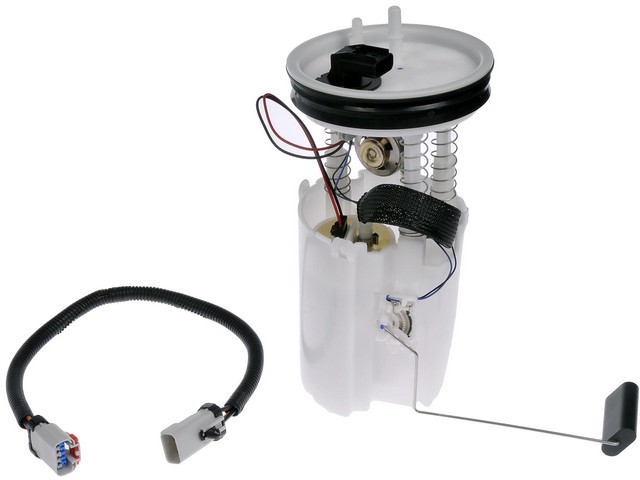

Dorman 2630102 fuel pump module for the 1996 Jeep Grand Cherokee 6-cylinder 4.0L or V8 5.2L sits inside the fuel tank and delivers fuel to the engine. You may also see it listed as a fuel pump assembly.
- Part of the Dorman OE Solutions line
- Plastic housing for the in-tank module
- Flow rated up to 26.42 U.S. gallons per hour
- Male outlet, 9.49 mm in diameter
- Rigorous testing for reliable performance
Quick facts
- Part: Dorman 2630102 fuel pump module
- Also called: fuel pump assembly
- Fits: 1996 Jeep Grand Cherokee 6-cylinder 4.0L or V8 5.2L
- Material: Plastic housing
- Condition: New
Hard starting, sputtering at speed or a whine from the tank can mean the fuel pump module is worn, though the fuel filter or the fuel pump relay can be behind the same signs, so find the cause before replacing the module.
Fits
This fuel pump module is a direct replacement for the original equipment pump in the 1996 Jeep Grand Cherokee 6-cylinder 4.0L or V8 5.2L. Only one module is needed per vehicle, and it sits in the fuel tank.
Specifications
Fit and size
- Quantity per vehicle: 1
- Housing length: 160 mm
- Housing width: 124 mm
- Outlet diameter: 9.49 mm
- Outlet type: male
- Connector: female, flat plug, black; 4 spade terminals, 2 wires
Build and materials
- Type: in-tank fuel module
- Housing material: plastic
- Maximum flow rating: 26.42 U.S. gallons per hour
- Condition: new
- Country of origin: China
In the box
One fuel pump module with a gasket or seal. A lock ring is not included, so plan on getting a new one.
Interchange: E7099M · PO74708M · 4856260 · 4883261 · 5003867AA · FG0225 · SP7099M
This part cross-references / interchanges with the following part numbers:
E7099M, PO74708M, 4856260, 4883261, 5003867AA, FG0225, SP7099M
Frequently Asked Questions
Is Dorman 2630102 the right fuel pump module for the 1996 Jeep Grand Cherokee 6-cylinder 4.0L or V8 5.2L?
Yes. Dorman 2630102 is a direct replacement for the original equipment pump in the 1996 Jeep Grand Cherokee with either the L6-4.0L or the V8-5.2L engine.
Does this Dorman fuel pump module come with a lock ring?
No. A lock ring is not included, so plan on getting one separately; the box holds one fuel pump module with a gasket or seal.
What is the maximum flow rating of the Dorman 2630102?
The Dorman 2630102 is rated up to 26.42 U.S. gallons per hour, and its male outlet measures 9.49 mm in diameter.
Can a whine from the fuel tank mean the module is wearing out?
It can. A whine from the tank, hard starting or sputtering can go with a worn module, and a shop can test the pump to confirm before you replace it.
What kind of electrical connector does this fuel pump module have?
This fuel pump module has a female, flat plug connector in black, with 4 spade terminals and 2 wires.
