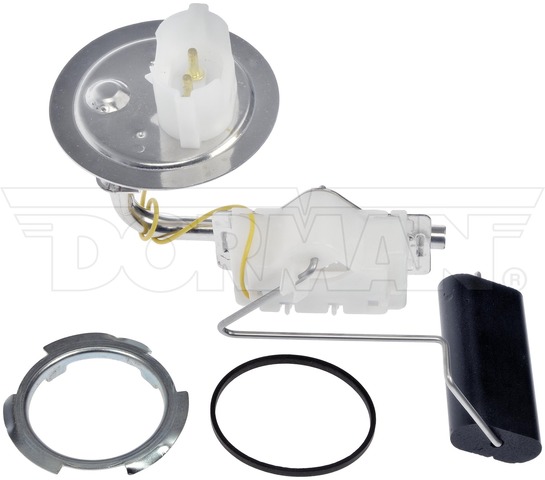

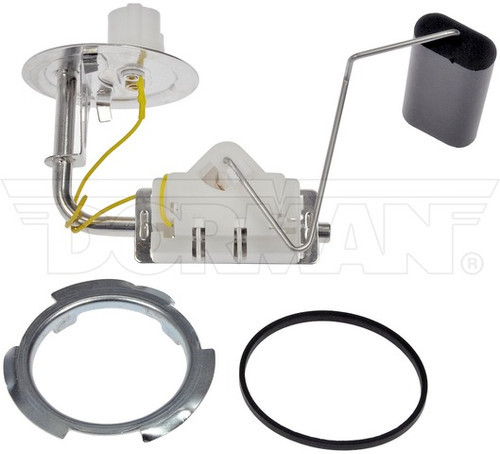

Dorman 692-246 fuel tank sending unit for the 1987-1993 Ford Mustang 4-cylinder 2.3L, the 1987-1995 Mustang V8 5.0L, the 1994-1997 Mustang V6 3.8L, the 1995 Mustang V8 5.8L and the 1996-1997 Mustang V8 4.6L reads the fuel level in the tank and sends it to the gauge. This Dorman fuel sending unit comes without a pump, and it replaces an original unit that has failed from an internal sensor failure.
- Part of the Dorman OE Solutions line
- Resistance of 15 ohms empty and 160 ohms full
- Two-pin terminal with a male plug connector
- Gasket or seal included
Quick facts
- Part: Dorman 692-246 fuel tank sending unit
- Fits: the 1987-1993 Ford Mustang 4-cylinder 2.3L, the 1987-1995 Mustang V8 5.0L, the 1994-1997 Mustang V6 3.8L, the 1995 Mustang V8 5.8L and the 1996-1997 Mustang V8 4.6L
- Condition: New
A fuel gauge that sticks on empty or full, or jumps while you drive, can point to a worn sending unit. A damaged wire at the tank can throw off the gauge too, so these signs alone do not prove the unit is the problem.
Fits
It is a direct replacement for these vehicles, in the years and with the engines named above. The tank takes a single sending unit, and this listing is one unit.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminal quantity: 2
- Resistance: 15 ohms empty, 160 ohms full
Build and materials
- Type: fuel sending unit without pump
- Terminal type: pin
- Connector type: male plug
- Gasket or seal: included
- Condition: New
- Country of origin: Taiwan
In the box
One fuel tank sending unit with a gasket or seal. The fuel pump and the wiring harness are not included.
Interchange: E7ZZ9275A · F4ZZ9275A · F5ZZ9275A · FG164A
This part cross-references / interchanges with the following part numbers:
E7ZZ9275A, F4ZZ9275A, F5ZZ9275A, FG164A
Frequently Asked Questions
Is this the Mustang fuel tank sending unit for 1996-1997 cars with the V8 4.6L?
Yes. Dorman 692-246 is listed for the 1996-1997 Ford Mustang V8 4.6L, and this listing is one sending unit.
Does the Dorman 692-246 come with a fuel pump or a wiring harness?
No. Dorman 692-246 is a sending unit without a pump, and the wiring harness is not included. A gasket or seal comes with it.
What resistance range does this fuel tank sending unit read?
This fuel tank sending unit reads 15 ohms when the tank is empty and 160 ohms when it is full.
Why does my fuel gauge read wrong, and could the sending unit be the cause?
A gauge stuck on empty or full, or one that jumps around, can mean the sensor inside the sending unit has failed. A shop can test the unit, since it sits inside the fuel tank.
How many terminals does this sending unit have, and what connector type?
This sending unit has two pin terminals and a male plug connector.
