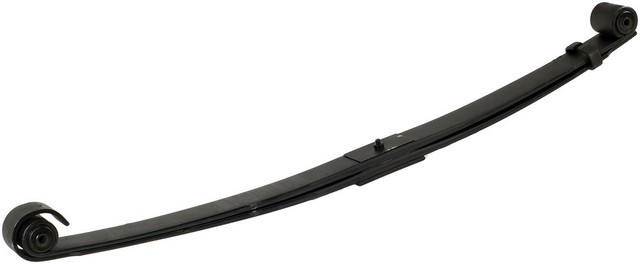

Dorman 43-516 front leaf spring for the 1985-1997 Ford F-350 holds the vehicle's weight and payload. This Dorman leaf spring, also called a leaf spring assembly, is a standard-grade replacement that supports suspension performance and passenger comfort.
- Part of the Dorman OE Solutions line
- Two-leaf steel spring pack, 1.812 in thick and 3 in wide
- Load rate of 2200 lb
- Up turned eye at both ends of the spring
- Bushings included with the spring
- Standard-grade spring that needs no axle modification
Quick facts
- Part: Dorman 43-516 leaf spring
- Also called: leaf spring assembly
- Fits: 1985-1997 Ford F-350
- Position: Front
- Material: Steel
- Condition: New
A cracked or broken leaf, rust damage or one side sitting lower than the other can mean the spring needs replacing, for example after overloading, a collision or corrosion. None of these signs alone proves the spring is the problem, since a worn shock can also make the ride feel rough.
Fits
This spring is a direct-fit replacement for the 1985-1997 Ford F-350, which takes two, one on each side of the front axle. This listing is one spring; the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Length axis 1 and axis 2: 23.875 in each
- Length B: 28.375 in
- Leaf width: 3 in
- Pack thickness: 1.812 in
- Arch length: 3 in
- Leaf quantity: 2
- Load rate: 2200 lb
Build and materials
- Material: Steel
- Suspension grade: Standard
- End attachment: Up turned eye at both ends
- Bushings: Included, black
- Helper spring: No
- Axle modification needed: No
- Condition: New
In the box
One leaf spring with bushings. Mounting hardware is not included, so plan on new hardware.
Interchange: 43-522 · 43-628 · 43-672 · 43-516HUS · 043-0516 · 43-516P
E5TA5310NA · E5TANA · E5TZ5310K · F5TA5310HA · F5TAHA
This part cross-references / interchanges with the following part numbers:
43-516, 43-522, 43-628, 43-672, E5TA5310NA, E5TANA, E5TZ5310K, F5TA5310HA, F5TAHA, 43-516HUS, 043-0516, 43-516P
Frequently Asked Questions
Is this the right 1985-1997 Ford F-350 leaf spring?
Yes. Dorman 43-516 is a front leaf spring for the 1985-1997 Ford F-350, and the truck takes one on each side of the front axle.
Does the Dorman 43-516 leaf spring come with bushings?
Yes. The listing is one leaf spring with bushings included. Mounting hardware is not included, so plan on new hardware.
What is the load rate of this front leaf spring?
This front leaf spring has a load rate of 2200 lb. The pack has two steel leaves, is 1.812 in thick and 3 in wide.
How can I tell if a front leaf spring is cracked or worn?
With the vehicle parked, look at the spring pack for a cracked or broken leaf or rust damage, and notice whether one side sits lower than the other.
Does Dorman 43-516 replace E5TZ5310K?
Yes. E5TZ5310K is one of the numbers Dorman 43-516 replaces, and it is printed on the Interchange line of this page.
