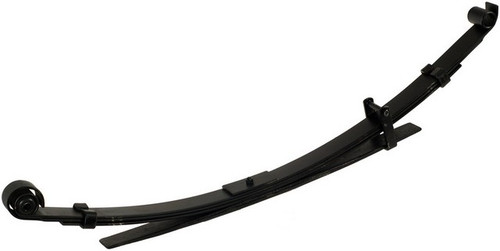

Dorman 90-105 rear leaf spring for the 1981-1987 Toyota Land Cruiser holds the weight and payload of the vehicle as part of the suspension. This Dorman leaf spring is a standard-grade replacement, also called a leaf spring assembly.
- Steel leaf spring with a load rate of 1545 pounds
- Replaces springs damaged by overloading, collision, cracking or corrosion
- Up turned eye at each end
- Bushings included, in black
- No helper spring and no axle modification needed
Quick facts
- Part: Dorman 90-105 leaf spring
- Also called: leaf spring assembly
- Fits: 1981-1987 Toyota Land Cruiser
- Position: Rear
- Material: Steel
- Condition: New
A rear end that sags, a cracked or rusted spring, or a spring bent by overloading or a collision can mean the spring needs replacing. Before you replace it, rule out worn bushings, shocks and other rear suspension parts that can also change how the rear rides, since a new spring will not fix those.
Fits
It is a direct-replacement leaf spring for the 1981-1987 Toyota Land Cruiser, which takes two. This listing is one spring, so the other side of the rear axle is normally done at the same time.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Length B: 25.375 in
- Length axis 1 and axis 2: 22.25 in each
- Arch length: 5.125 in
- Leaf width: 2.75 in
- Pack thickness: 1.575 in
- Load rate: 1545 pounds
Build and materials
- Material: Steel
- End attachment: up turned eye at both ends
- Bushings: included, black
- Mounting hardware: not included
- Suspension grade: standard
- Helper spring: no; axle modification needed: no
- Condition: New
In the box
One leaf spring. Mounting hardware is not included, so plan on new hardware, as the old pieces may not be reusable.
Interchange: 90-105DAY · 090-0105-00
4821060280
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
90-105DAY, 090-0105-00, 4821060280
Frequently Asked Questions
Is the Dorman 90-105 leaf spring right for the 1981-1987 Toyota Land Cruiser?
Yes. Dorman 90-105 is a rear leaf spring for the 1981-1987 Toyota Land Cruiser, which takes two; this listing is one spring.
Does this Dorman leaf spring come with bushings or mounting hardware?
Dorman 90-105 includes its bushings, which are black. Mounting hardware is not included, so plan on new hardware.
Does this rear leaf spring need a helper spring or axle modification?
No. It is a standard-grade spring with no helper spring, and no axle modification is needed.
Should a cracked or rusted rear leaf spring be replaced right away?
Yes. A cracked, broken, badly rusted or bent spring should be checked by a shop and replaced promptly rather than driven on.
How long is the Dorman 90-105 leaf spring?
Length B is 25.375 in, and axis 1 and axis 2 are 22.25 in each. The arch length is 5.125 in and the leaf is 2.75 in wide.
