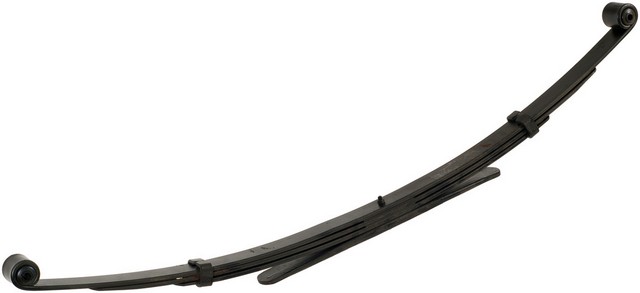

Dorman 90-241 rear right leaf spring for the 2004-2006 Toyota Tundra holds up the weight and payload of the vehicle. This Dorman leaf spring, also called a leaf spring assembly, replaces a spring damaged by overloading, collision, cracking or corrosion.
- Steel construction with 4 leaves
- Up-turned eye at both ends
- Black bushings included
- No axle modification needed
- Part of the Dorman OE Solutions line
Quick facts
- Part: Dorman 90-241 leaf spring
- Also called: leaf spring assembly
- Fits: 2004-2006 Toyota Tundra
- Position: Rear right
- Material: Steel
- Condition: New
A sagging rear corner, a clunk over bumps or a cracked leaf can mean the spring is worn, though a worn shock absorber or bushing can be behind similar signs, so find the cause before replacing it. Rear springs are normally replaced as a pair; this listing is one spring, for the rear right.
Fits
Among the 2004-2006 Toyota Tundra leaf springs, this one is a direct-fit replacement for the rear right position.
Specifications
Fit and size
- Position: rear right
- Quantity: 1 leaf spring
- Leaf quantity: 4
- Length (axis 1 and axis 2): 28.563 in
- Length B: 31.875 in
- Arch length: 7.25 in
- Leaf width: 2.375 in
- Pack thickness: 2.008 in
Build and materials
- Material: steel
- End attachments: up-turned eye at both ends
- Bushings: included, black
- Load rate: 1485 pounds
- Suspension grade: standard
- Condition: new
In the box
One leaf spring with its bushings. This listing is one spring for the rear right, which takes one on the 2004-2006 Toyota Tundra; the rear left is ordered separately. Mounting hardware is not included, so plan on new hardware, as the old pieces may not be reusable.
Interchange: 90-241DAY · 090-0241-00
48210AF080 · 48210AF081 · 48210AF082
This part cross-references / interchanges with the following part numbers:
90-241, 90-241DAY, 090-0241-00, 48210AF080, 48210AF081, 48210AF082
Frequently Asked Questions
Which side of the 2004-2006 Toyota Tundra rear leaf springs is the Dorman 90-241?
Dorman 90-241 is the rear right leaf spring for the 2004-2006 Toyota Tundra. The rear left is a separate part and is ordered on its own.
Does the Dorman 90-241 leaf spring come with bushings?
Yes, Dorman 90-241 includes the bushings, which are black. Mounting hardware is not included, so plan on new hardware, as the old fasteners may not be reusable.
What is the load rate of this steel leaf spring?
The load rate is 1485 pounds. The spring has 4 leaves and an up-turned eye at each end.
How do I spot a worn rear right leaf spring?
A cracked or broken leaf, heavy corrosion or a rear corner sitting lower than the other side can point to a worn spring. A shop can inspect the spring under load.
Does the Dorman 90-241 replace number 48210AF080?
Yes, 48210AF080 is one of the numbers Dorman 90-241 replaces. This listing is for the rear right position.
