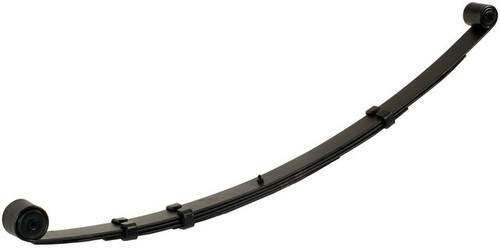

Dorman 97-565 rear leaf spring for the 1987-1995 Jeep Wrangler holds the vehicle's weight and payload as part of the rear suspension. Also called a leaf spring assembly, it replaces a spring that has cracked, rusted or been damaged by overloading or a collision.
- Steel leaf spring with 5 leaves
- Up turned eye at both ends
- Bushings included
- Load rate of 765 pounds
- Standard-grade replacement that needs no axle modification
Quick facts
- Part: Dorman 97-565 leaf spring
- Also called: leaf spring assembly
- Fits: 1987-1995 Jeep Wrangler
- Position: Rear
- Material: Steel
- Condition: New
A sagging rear end, a cracked or broken leaf, rust or a clunk over bumps can mean the spring is worn, though worn shock absorbers or tired bump stops can be behind the same signs. This listing is one spring, and the springs on both rear sides are normally replaced together.
Fits
It is a direct-fit replacement leaf spring for the 1987-1995 Jeep Wrangler.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Length (axis 1 and axis 2): 22.688 in
- Arch length: 5.875 in
- Leaf width: 2.5 in
- Pack thickness: 1.201 in
Build and materials
- Material: Steel
- Leaf quantity: 5
- Load rate: 765 pounds
- End attachment: up turned eye at both ends
- Bushings: included
- Helper spring: no
- Condition: New
In the box
One leaf spring with bushings. This listing holds one spring; the 1987-1995 Jeep Wrangler takes two. Mounting hardware is not included, so plan on new hardware, since the old pieces may not be reusable.
Interchange: 76-790 · 97-565DAY · 097-0565-00
209RH · 52003209
This part cross-references / interchanges with the following part numbers:
209RH, 52003209, 76-790, 97-565DAY, 097-0565-00, 97-565
Frequently Asked Questions
Is Dorman 97-565 the right rear leaf spring for a 1987-1995 Jeep Wrangler?
Yes. Dorman 97-565 is a rear leaf spring for the 1987-1995 Jeep Wrangler, and each Wrangler takes two.
Does this Dorman leaf spring come with bushings or mounting hardware?
It includes bushings, but mounting hardware is not included. The package holds one leaf spring.
How many leaves and what load rate does this steel leaf spring have?
Dorman 97-565 has 5 leaves and a load rate of 765 pounds. It is steel, with an up turned eye at each end.
How can I tell if a rear leaf spring is worn out?
Look for a cracked or broken leaf, heavy rust or a rear end that sits low. Any of these can mean the spring is worn.
Is 76-790 the same leaf spring as Dorman 97-565?
Yes. 76-790 is listed as an interchange number for Dorman 97-565, along with 97-565DAY and 097-0565-00.
