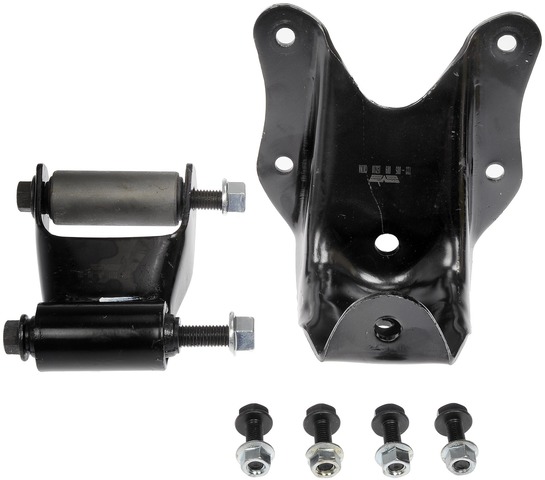

Repair a worn or damaged rear leaf spring connection with the Dorman leaf spring shackle and bracket kit, part number 722-101, engineered to match the original hardware needed to repair the leaf spring. It fits many vehicles, among them the 1980-1996 Ford F-150, 1980-1997 Ford F-250 and 1980-1996 Ford Bronco, as a direct-fit replacement for the listed applications. See the "Vehicles it fits" section for the full list.
The bracket and shackle attach the rear leaf spring to the vehicle's frame. The shackle lets the spring's length change as it flexes over bumps. When these pieces wear, rust or crack, the spring may no longer be held securely.
- Direct replacement: Designed to match the factory hardware needed for a leaf spring repair on the listed applications.
- Ideal solution: A dependable choice when the original shackle or bracket is damaged or has worn out.
- Durable construction: Built from quality components for reliable performance and durability.
- Trustworthy quality: Backed by Dorman's team of product experts in the United States and more than a century of automotive experience.
Signs this part may need replacing include clunking or squeaking from the rear suspension over bumps, visible rust, cracks or elongated holes at the shackle or bracket, and excess play at the end of the spring. Have the suspension inspected to confirm the cause before you replace parts.
Interchange: E0TZ5775C · E0TZ5776A · E0TZ5776C · K150410
This part cross-references / interchanges with the following part numbers:
E0TZ5775C, E0TZ5776A, E0TZ5776C, K150410
Frequently Asked Questions
Will this work as a 1980-1996 Ford F-150 leaf spring shackle replacement?
Yes. It is a direct-fit replacement for the 1980-1996 Ford F-150, and it also fits the 1980-1997 Ford F-250 and 1980-1996 Ford Bronco. See the "Vehicles it fits" section for every listed application.
What does a leaf spring shackle and bracket do?
The bracket anchors the rear leaf spring to the frame. The shackle links the spring to it and lets the spring's length change as it flexes over bumps.
What does the Dorman leaf spring shackle kit replace?
It replaces the original rear shackle and bracket hardware used to repair the leaf spring. It is intended for original parts that are damaged or worn out.
What are the signs of a worn leaf spring shackle?
Signs this part may need replacing include clunking or squeaking from the rear over bumps, visible rust or cracks, elongated mounting holes, and excess play at the end of the spring.
Can I reuse my old bolts when installing it?
Check the vehicle service information for the correct fasteners and whether the originals may be reused. Always support the vehicle's weight safely before you disconnect the leaf spring.
