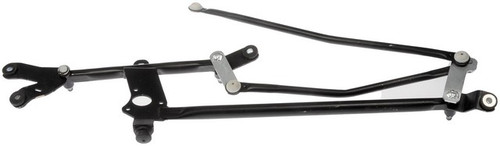

Dorman 602-067 front windshield wiper linkage for the 2010-2015 Toyota Prius and other vehicles connects the wiper motor to the wiper arms. It is application specific, reverse engineered from the original linkage design.
- Replaces a failed crank arm to help restore wiper blade operation
- Two-piece linkage with a bracket
- Steel bushings and bolt-on attachment
- Mechanical driver with clockwise rotation direction
Quick facts
- Part: Dorman 602-067 windshield wiper linkage
- Fits: 2010-2015 Toyota Prius and other vehicles
- Position: Front
- Condition: New
Wiper blades that stall, stop partway across the glass or do not move can point to trouble in the linkage. A wiper motor, a loose arm or a seized pivot can also leave the blades stuck, so look over the crank arm and joints with the engine off for cracks, bends or play before you replace anything.
Fits
This windshield wiper linkage is a direct replacement for the 2010-2015 Toyota Prius and the 2012-2015 Toyota Prius Plug-In. Both take one linkage, and this listing is a single piece.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 1
- Length: 32 in
- Material thickness: 0.905 in
- Wiper arm pivot point diameter: 0.358 in
- Attachment method: bolt on
Build and materials
- Configuration: two piece, with a bracket
- Bushing material: steel
- Driver type: mechanical
- Rotation direction: clockwise
- Grade: standard replacement
- Condition: new
- Country of origin: Vietnam
In the box
One windshield wiper linkage. Mounting hardware is not included, and the old fasteners may not be reusable, so plan on new ones.
Interchange: 8515047140
Frequently Asked Questions
Does the Dorman wiper linkage 602-067 fit the 2012-2015 Toyota Prius Plug-In?
Yes. Dorman 602-067 is listed for the 2012-2015 Toyota Prius Plug-In and the 2010-2015 Toyota Prius, and each takes one.
Does the 602-067 wiper linkage come with bolts?
No. Dorman 602-067 is sold as one windshield wiper linkage without mounting hardware, so new fasteners are bought separately.
How long is this front wiper linkage?
The linkage is 32 inches long. Its material thickness is 0.905 inch and its wiper arm pivot point diameter is 0.358 inch.
What are the signs of a failed wiper linkage crank arm?
Blades that stall, stop partway across the glass or will not move at all can be signs of a failed linkage. A shop can test the motor and linkage together.
Does 8515047140 match this Dorman 602-067 linkage?
Yes. 8515047140 is listed as an interchange number for Dorman 602-067, so you can use it when cross-referencing.
