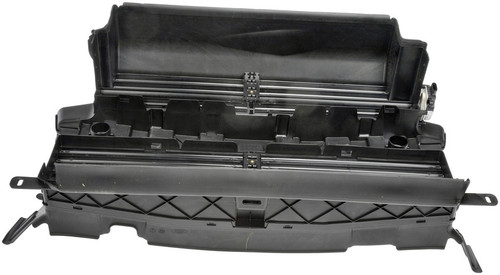

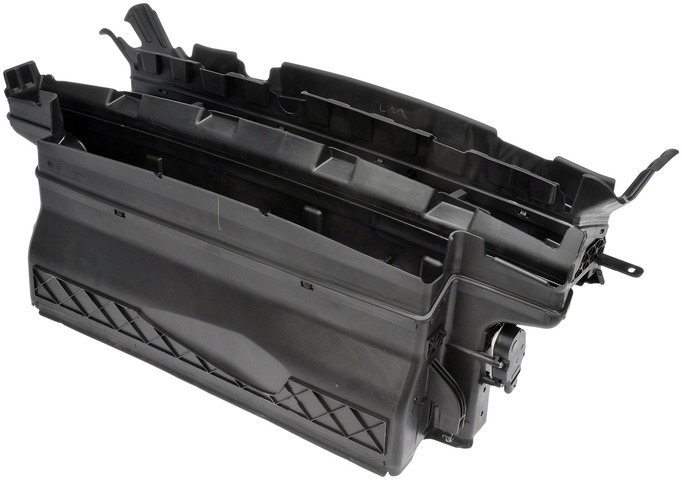

Dorman 601-315 radiator shutter assembly for the 2013-2016 Ford Escape 4-cylinder 1.6L, 2.0L or 2.5L replaces the active grille shutter and its motor, which control airflow through the grille. It is intended to restore function to the vehicle's active grille shutter system.
- Active grille shutter and motor supplied as one assembly
- Plastic construction
- Undergoes extensive testing for fit and reliable performance
- Part of the Dorman OE Solutions line
Quick facts
- Part: Dorman 601-315 radiator shutter assembly
- Fits: 2013-2016 Ford Escape 4-cylinder 1.6L, 2.0L or 2.5L
- Material: Plastic
- Condition: New
Shutters that stay stuck open or closed, or a fault code for the shutter system, can mean the motor or shutter has worn out. These signs alone do not prove this assembly is the problem, since a damaged connector can cause them too.
Fits
This assembly fits the 2013-2016 Ford Escape 4-cylinder 1.6L, 2.0L or 2.5L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 21.8 in
- Width: 17.2 in
Build and materials
- Type: active grille shutter with motor
- Motor: included
- Material: plastic
- Condition: new
- Country of origin: China
In the box
One radiator shutter assembly with motor. This listing is one assembly, and the 2013-2016 Ford Escape 4-cylinder 1.6L, 2.0L or 2.5L takes one. Mounting hardware is not included, so plan on new fasteners rather than reusing the old ones.
Installation notes

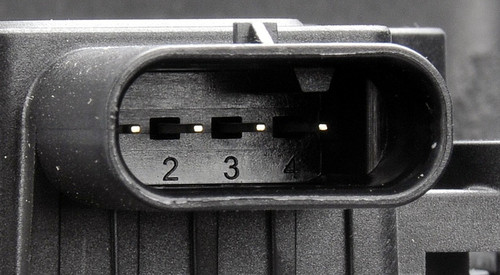

- Factory-style electrical connector for plug-and-play installation.
Interchange: CJ5Z8475A · CJ5Z8475B · CJ5Z8475C · AGSH1003
This part cross-references / interchanges with the following part numbers:
CJ5Z8475A, CJ5Z8475B, CJ5Z8475C, AGSH1003
Frequently Asked Questions
Is the Dorman 601-315 radiator shutter assembly right for the 2013-2016 Ford Escape 4-cylinder 1.6L, 2.0L or 2.5L?
Yes. Dorman 601-315 fits the 2013-2016 Ford Escape 4-cylinder 1.6L, 2.0L or 2.5L, which takes one.
Does this radiator shutter assembly come with the motor?
Yes. The listing is one radiator shutter assembly with its motor. Mounting hardware is not included.
What is this radiator shutter assembly made of, and how big is it?
This radiator shutter assembly is made of plastic. It measures 21.8 in long and 17.2 in wide.
Is the Dorman 601-315 plug and play?
Yes. Dorman 601-315 has a factory-style electrical connector made for plug-and-play installation.
What can show that a radiator shutter assembly has failed?
Cracked or broken slats you can see with the engine off, or a shutter-system warning light, can mean the assembly has failed. A shop can test the motor.
