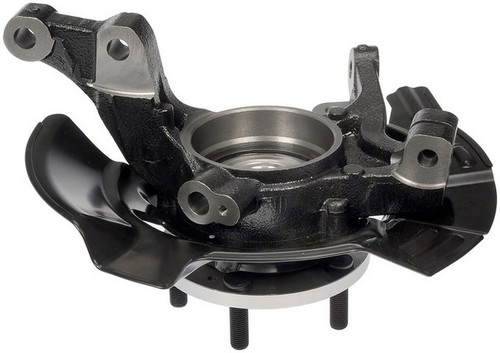

Dorman 698-456 front right steering knuckle assembly for the 2011 Hyundai Sonata holds the wheel hub and links it to the steering. A worn wheel bearing normally means a hydraulic press job, but this Dorman steering knuckle comes with the hub and bearing in place.
- Dorman OE FIX design with all critical components already assembled for a fast, simple install
- Assembled knuckle saves hours otherwise spent wrestling with corroded individual components
- Cast iron knuckle body with a painted black finish

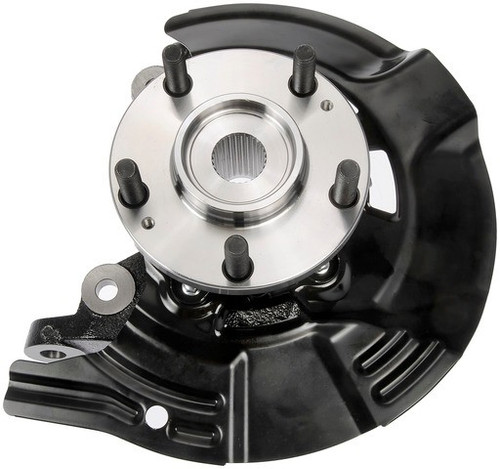

- Gen 1 ball wheel bearing paired with a 27-spline driven hub
Quick facts
- Part: Dorman 698-456 steering knuckle assembly
- Also called: wheel bearing and hub assembly, steering knuckle kit
- Fits: 2011 Hyundai Sonata
- Position: Front right
- Material: Cast iron
On the front right, a grinding noise that rises with road speed, uneven tire wear or play in the wheel can mean the wheel bearing or knuckle is worn. Tires, brakes and tie rods can give similar symptoms, so start with a look at the front right tire for cupped or uneven tread with the car parked and the engine off.
Fits
It is a direct-fit replacement for the front right of the 2011 Hyundai Sonata. The front left side takes its own steering knuckle assembly, ordered on its own, and the two sides of the front axle are usually done together.
Specifications
Fit and size
- Position: Front right
- Inside diameter: 28.8 mm
- Outside diameter: 69 mm
- Knuckle pilot hole diameter: 114.3 mm
- Knuckle bolt circle diameter: 114.3 mm
- Knuckle bolt hole: 18 mm, fine thread, 1.5 mm pitch
- Wheel stud thread pitch: 1.5 mm, fine thread
- Wheel bolt thread pitch: 1.5 mm
- Width: 259 mm
- Spline count: 27
Build and materials
- Material: Cast iron
- Finish: Painted, black
- Bearing type: Ball, Gen 1
- Hub included: Yes
- Drive type: Driven
- ABS type: Sensor
- Country of origin: China
In the box

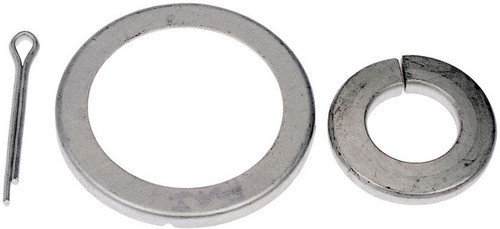

One front right steering knuckle assembly, one castle nut, one cotter pin and two washers. This listing holds one, which is what the front right position takes. Other mounting hardware and the axle are not included, so plan on new mounting bolts.
Installation notes
- Arrives pre-pressed and ready to install right out of the box.
- No instruction manual comes with the part.
Interchange: 5172038110 · 5175039603 · 517562T850 · SK698456 · WLK456
This part cross-references / interchanges with the following part numbers:
5172038110, 5175039603, 517562T850, SK698456, WLK456
Frequently Asked Questions
Is this the 2011 Hyundai Sonata hub bearing for the front right wheel?
Yes. Dorman 698-456 is a front right steering knuckle assembly for the 2011 Hyundai Sonata, and it comes with the hub and wheel bearing already pressed in.
What hardware comes with the Dorman steering knuckle kit?
This steering knuckle assembly comes with one castle nut, one cotter pin and two washers. Other mounting hardware and the axle are not included.
How many splines does the Dorman wheel hub on this knuckle have?
The hub on this front right steering knuckle assembly has 27 splines. The knuckle bolt circle diameter is 114.3 mm, and the wheel stud thread pitch is 1.5 mm.
What can a worn Dorman wheel bearing feel like from the driver's seat?
A worn front wheel bearing can cause a hum or growl that changes with speed, a vibration through the steering wheel or a loose, wandering feel in the steering.
Do I need a hydraulic press for this Dorman wheel bearing and hub assembly?
No. Dorman 698-456 comes pre-pressed, with the hub and bearing already assembled in the knuckle, so the bearing repair needs no hydraulic press.
