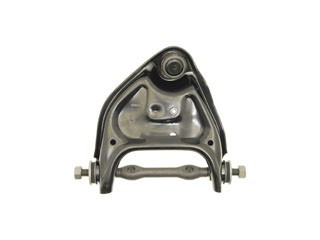

Dorman 520-315 front left upper control arm with ball joint for the 1999-2003 Dodge Ram 1500 Van and other vehicles links the front left wheel to the suspension. This Dorman suspension control arm and ball joint assembly directly replaces the original assembly.
- Part of the Dorman OE Solutions line
- Evaluated in testing for a smooth ride, directional stability and predictable dynamics
- Ball joint and bushings come pre-installed, which saves time and labor
- Threaded ball joint stud with a 14 mm thread diameter
- Additional coatings resist rust and corrosion
Quick facts
- Part: Dorman 520-315 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 1999-2003 Dodge Ram 1500 Van and other vehicles
- Position: Front left upper
- Material: Steel
- Condition: New
A clunk over bumps, loose steering or uneven front tire wear can come from a worn arm, bushing or ball joint. Before you replace a Dorman suspension control arm, rule out worn tie rod ends, a tired shock or a wheel bearing, since those can cause similar signs. This listing is one arm for the front left; the front right is a separate part, and both sides are normally replaced together.
Fits
It is listed for a wide range of Dodge and Plymouth models, led by the 1999-2003 Dodge Ram 2500 Van and the 1999-2003 Dodge Ram 3500 Van, and the front left upper position takes one arm. If your vehicle isn't named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front left upper
- Quantity per vehicle: 1 for this position
- Mounting hole diameter: 12.3 mm
- Ball joint thread diameter: 14 mm
- Maximum width: 288.5 mm
- Maximum length: 237 mm
Build and materials
- Construction: casting/forged
- Control arm material: steel
- Bushing material: rubber
- Ball joint stud: threaded
- Pre-greased: yes
- Grease fitting: not included
- Grade: standard replacement
- Condition: new
- Country of origin: Thailand
In the box
One control arm with the ball joint and bushings installed, plus mounting hardware.
Interchange: 4210873-L
4210873 · 4210873AB · 4210873AD · 4210873AE · 4210875 · 4210875AB · 5134385AA · TC7681 · CA12244 · CK620315 · RK620315 · FA4212 · GS20380 · CMS20380 · 2605339 · 8CB25037 · SRK620315
This part cross-references / interchanges with the following part numbers:
4210873, 4210873AB, 4210873AD, 4210873AE, 4210875, 4210875AB, 5134385AA, TC7681, CA12244, CK620315, RK620315, FA4212, GS20380, CMS20380, 2605339, 8CB25037, SRK620315, 4210873-L
Frequently Asked Questions
Does the Dorman 520-315 fit the 1999-2003 Dodge Ram 2500 Van?
Yes, Dorman 520-315 is listed for the 1999-2003 Dodge Ram 2500 Van as a front left upper arm with ball joint. If your vehicle isn't named, look it up in the "Vehicles it fits" section.
Are the Dorman control arm bushings already installed?
Yes, the rubber bushings come installed on the arm, along with the ball joint. Mounting hardware is included.
Is this Dorman upper control arm for the left or right side?
Dorman 520-315 is the front left upper arm. The front right is a separate part.
What thread does the ball joint stud on this Dorman control arm have?
The ball joint stud is threaded, with a 14 mm thread diameter. The mounting hole diameter is 12.3 mm.
Is this control arm assembly pre-greased?
Yes, the assembly is pre-greased. No grease fitting is included with this control arm.
